Construction Double Drum Winch 2000RPM-3600RPM Dual Drum Winch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Double Drum Winch | Item No.: | 09151-09162 |
|---|---|---|---|
| Power: | 6.3-9KW | Speed: | 2000-3600RPM |
| Drum Bottom Of Groove Diameter: | 230-300mm | Weight: | 270-700KG |
| Highlight: | Construction Double Drum Winch 2000RPM,3600RPM Dual Drum Winch,2000RPM Dual Drum Winch |
||
Construction Double Drum Winch 2000RPM-3600RPM Dual Drum Winch
Double Drum Winch Efficient Design For Dual Line Load Management
Professional-grade dual drum winch designed for heavy-duty applications with independent drum operation and superior load management capabilities.
Professional Dual Drum Performance
- Independent drum operation for simultaneous dual line handling
- 8-ton capacity per drum for heavy load applications
- Precision control for synchronized or independent drum operation
Industrial-Grade Construction
- Twin forged steel drums withstand extreme working loads
- Hardened steel gears for extended durability
- Corrosion-resistant coating for marine environments
Advanced Safety Features
- Dual automatic braking systems
- Independent overload protection for each drum
- Emergency stop function with quick release
Technical Specifications
| Item No. | 09151 | 09152 | 09162 |
|---|---|---|---|
| Model | JJCS-50J | JJQS-50J | JJCS-50T |
| Engine Model | KF186A Diesel Engine | Honda 390 Gasoline Engine | S195G Diesel Engine |
| Power (KW) | 6.3 | 6.6 | 9 |
| Speed (RPM) | 2600 | 3600 | 2000 |
| Pull force (KN)/Speed (M/MIN) Slow | 50*6.0,30/10 | 50/6.0,30/10 | 50/3.1,40/9.6 |
| Moderate | / | / | 45/7.1,17/22.3 |
| Fast | 13/23,10/30 | 13/23,10/30 | 33/11.3,10/35.6 |
| Reverse | -/5,-/17 | -/5,-/17 | -/7.35 |
| Drum bottom of groove diameter | Φ230 | Φ230 | Φ300 |
| Outline size (MM) | 1280*770*600 | 1280*770*600 | 2440*1300*1140 |
| Weight (KG) | 280 | 270 | 700 |

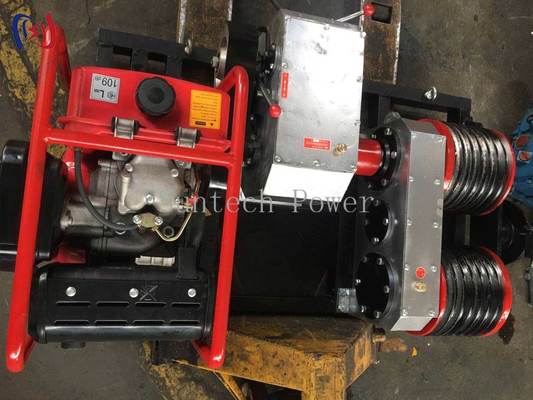

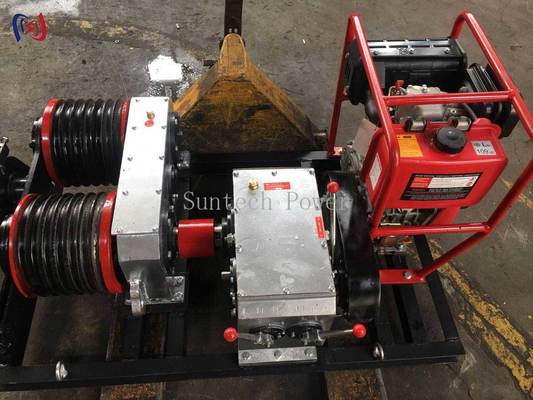

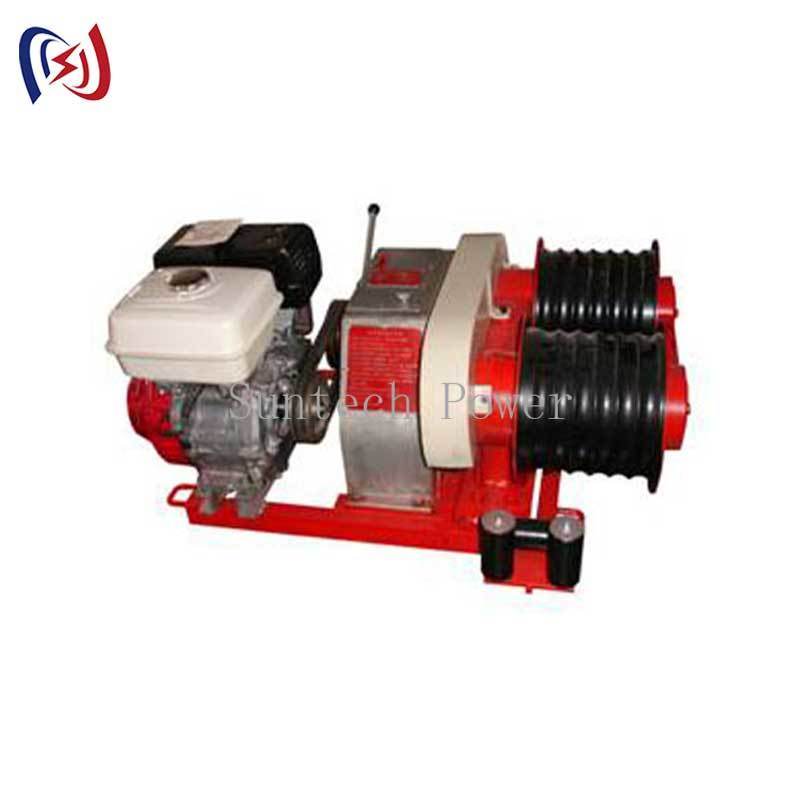

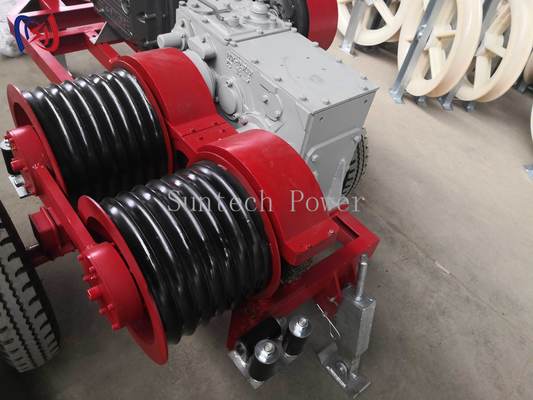

Product Image
Key Advantages
- 50% more efficient than single drum systems
- Superior load balancing capability
- Works in space-constrained areas
- 3:1 lifespan advantage over single drum winches
- Reduces equipment requirements by 50%
Industry Applications
- Offshore oil and gas
- Shipbuilding and repair
- Heavy construction
- Mining operations
- Utility installation
