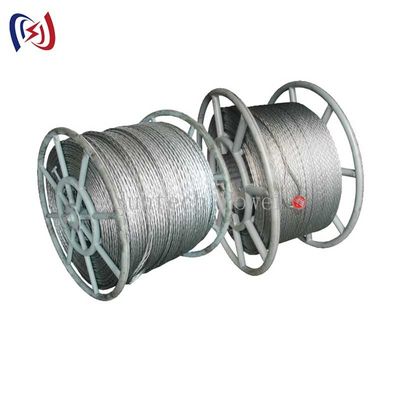

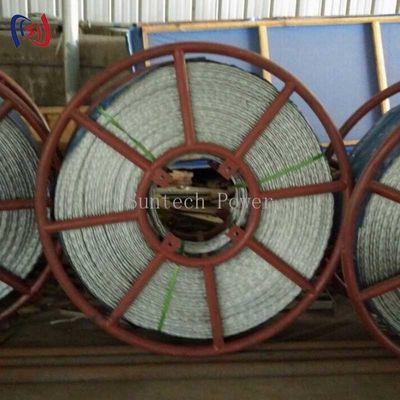

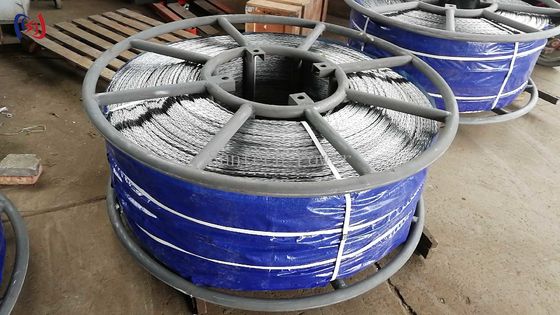

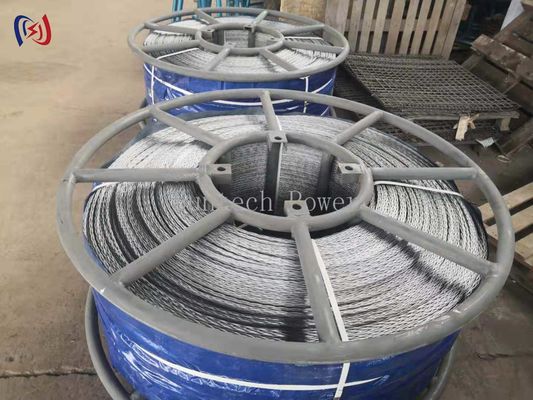

9mm-42mm Pilot Wire In Transmission Line Galvanized Braided Anti Twist Wire Rope
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Anti-Twisting Braided Steel Rope | Structure: | 12 Strand /18 Strand |
|---|---|---|---|
| Diameter: | 9-42mm | Breaking Force: | 54-817 |
| Weight: | 0.3KG/M-4.08KG/M | Notes: | The Specification And Length Of Steel Can Custom According To Your Request |
| Feature: | Made Of High Strength Galvanized Steel Wire. It Doesn't Turn When It's Turn Round.Soft Not Broken Strand. | ||
| Highlight: | 42mm Pilot Wire In Transmission Line,9mm Pilot Wire In Transmission Line,Braided Anti Twist Wire Rope |
||
9mm-42mm Pilot Wire In Transmission Line Galvanized Braided Anti Twist Wire Rope
Product Description
9-42mm Transmission Line Pilot Wire Galvanized Braided Anti Twisting Steel Wire Rope
Application
Designed for mechanical pulling and tensioning release conductors. Not suitable for small diameter winch pulling ropes. Constructed from 1960MPa high-strength galvanized steel wire with excellent rotation resistance during pulling operations. Features superior suppleness and disperse resistance.
Features
- Made of high strength galvanized steel wire
- Maintains stability during rotation (doesn't turn when rotated)
- Soft construction prevents broken strands
Specifications
| Item Number | Structure | Diameter (mm) | Breaking Force (kN) | Weight (kg/m) |
|---|---|---|---|---|
| 18117 | 12 Strand | 9 | ≥54 | 0.3 |
| 18118 | 11 | ≥81 | 0.45 | |
| 18119 | 13 | ≥115 | 0.58 | |
| 18120 | 15 | ≥157 | 0.82 | |
| 18121 | 18 | ≥205 | 1.03 | |
| 18122 | 20 | ≥260 | 1.33 | |
| 18123 | 23 | ≥320 | 1.63 | |
| 18124 | 25 | ≥387 | 2.03 | |
| 18125 | 27 | ≥461 | 2.37 | |
| 18126 | 28 | ≥520 | 2.6 | |
| 18127 | 30 | ≥560 | 3.12 | |
| 18140 | 21 | ≥173 | 0.87 | |
| 18141 | 18 Strand | 24 | ≥236 | 1.24 |
| 18151 | 27 | ≥309 | 1.55 | |
| 18152 | 30 | ≥389 | 1.99 | |
| 18153 | 33 | ≥481 | 2.45 | |
| 18154 | 36 | ≥581 | 3.05 | |
| 18155 | 39 | ≥692 | 3.56 | |
| 18156 | 42 | ≥817 | 4.22 |
Note: Specifications and length can be customized according to your requirements.
