Galvanized Pilot Wire Rope 9mm-42mm Braided Anti Twisting Steel Wire Rope
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Anti-Twisting Braided Steel Rope | Item No.: | 18117-18156 |
|---|---|---|---|
| Structure: | 12/18 Strand | Diameter: | 9-42mm |
| Breaking Force: | 54-817KN | Warranty: | 1 Year |
| Highlight: | Galvanized Pilot Wire Rope 9mm,Pilot Wire Rope 42mm,Braided Anti Twisting Steel Wire Rope |
||

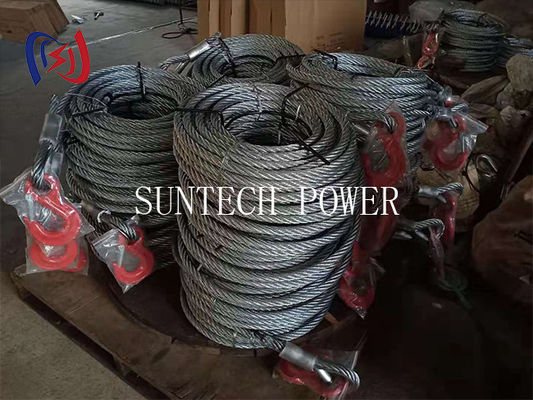

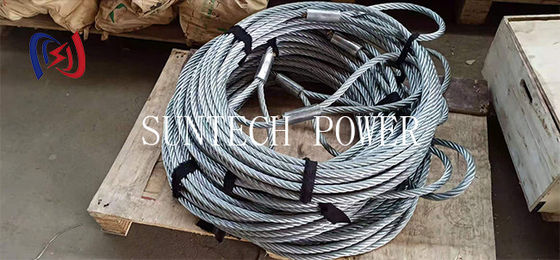

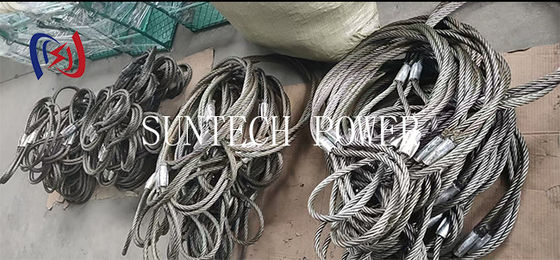

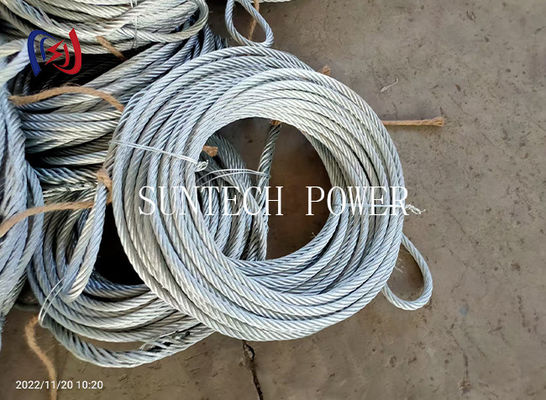

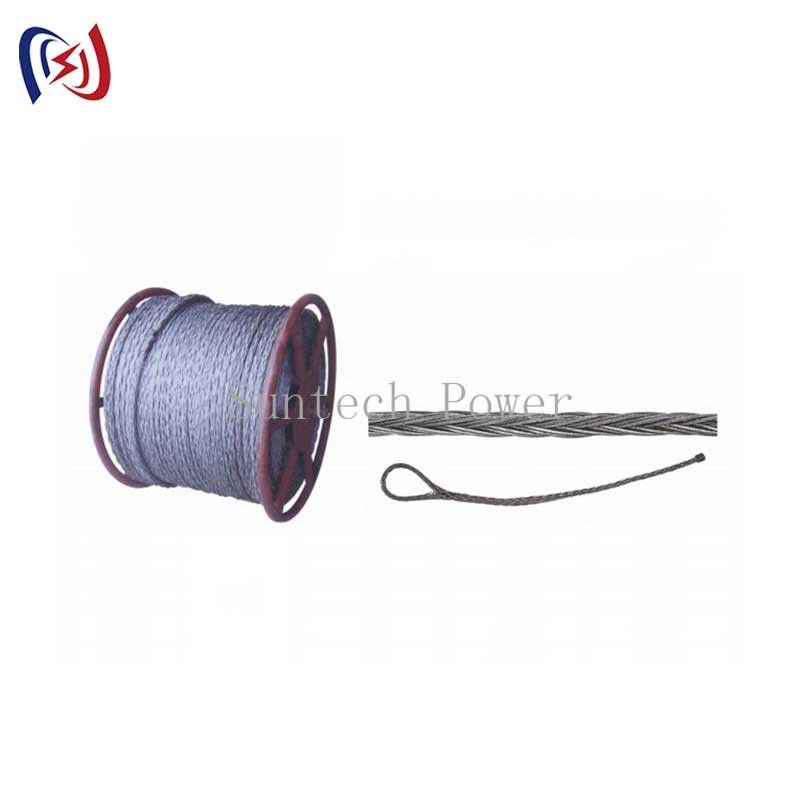

Galvanized Pilot Wire Rope 9mm-42mm Braided Anti Twisting Steel Wire Rope
9-42mm Transmission Line Pilot Wire Galvanized Braided Anti Twisting Steel Wire Rope
Application
Designed for mechanical pulling and tensioning release conductors. Not suitable for small diameter winch pulling ropes. Constructed from braided 1960MPa high-strength galvanized steel wire with excellent rotation resistance during pulling operations. Features superior suppleness and disperse resistance.
Features
- Made of high strength galvanized steel wire
- Rotation-resistant design prevents twisting during operation
- Soft construction prevents broken strands
Note: Specifications and length can be customized according to your requirements.
Product Specifications
| Item Number | Structure | Diameter (mm) | Breaking Force (kN) | Weight (kg/m) |
|---|---|---|---|---|
| 18117 | 12 Strand | 9 | ≥54 | 0.3 |
| 18118 | 12 Strand | 11 | ≥81 | 0.45 |
| 18119 | 12 Strand | 13 | ≥115 | 0.58 |
| 18120 | 12 Strand | 15 | ≥157 | 0.82 |
| 18121 | 12 Strand | 18 | ≥205 | 1.03 |
| 18122 | 12 Strand | 20 | ≥260 | 1.33 |
| 18123 | 12 Strand | 23 | ≥320 | 1.63 |
| 18124 | 12 Strand | 25 | ≥387 | 2.03 |
| 18125 | 12 Strand | 27 | ≥461 | 2.37 |
| 18126 | 12 Strand | 28 | ≥520 | 2.6 |
| 18127 | 12 Strand | 30 | ≥560 | 3.12 |
| 18140 | 12 Strand | 21 | ≥173 | 0.87 |
| 18141 | 18 Strand | 24 | ≥236 | 1.24 |
| 18151 | 18 Strand | 27 | ≥309 | 1.55 |
| 18152 | 18 Strand | 30 | ≥389 | 1.99 |
| 18153 | 18 Strand | 33 | ≥481 | 2.45 |
| 18154 | 18 Strand | 36 | ≥581 | 3.05 |
| 18155 | 18 Strand | 39 | ≥692 | 3.56 |
| 18156 | 18 Strand | 42 | ≥817 | 4.22 |
