Core Grinding Reel Cable Take Up Machine Transmission Line Stringing Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Core Grinding Take-up Machine | Item No.: | 08192-08193 |
|---|---|---|---|
| Rotational Speed: | 8-19RPM | Traction Speed: | 8.5-23M/min |
| Tractive Force: | 0.75-3T | Power: | 2.94-6.61KW |
| Weight: | 115-188KG | Warranty: | 1 Year |
| Highlight: | Core Grinding cable take up machine,2.94KW cable take up machine,6.61KW reel take up machines |
||

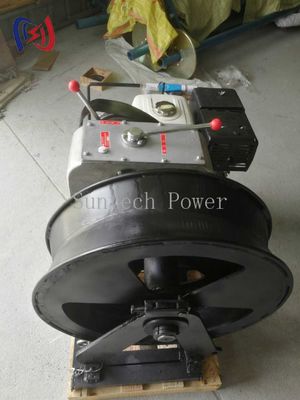

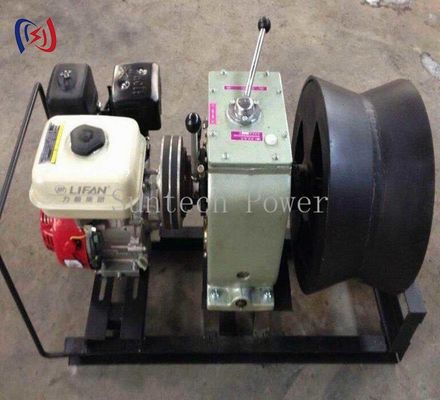

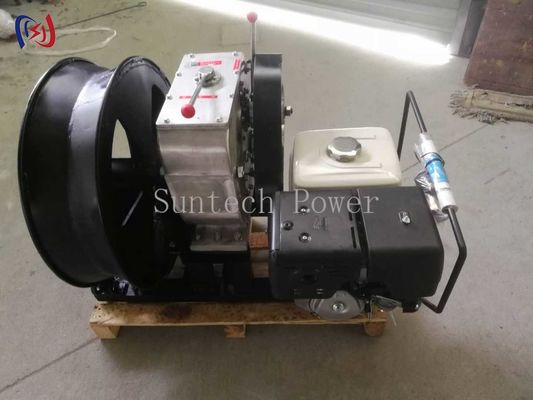

Core Grinding Reel Cable Take Up Machine Transmission Line Stringing Tools
Core Grinding Take-Up Machine Transmission Line Stringing Tools
Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China. Our product range includes:
- Conductor stringing blocks
- Cable rollers
- Hoisting tackles
- Pulley blocks
- Conductor grippers
- Cable reel stands
- Gin poles
- Inspection trolleys
- Hydraulic puller tensioners
- Conductor compressors
- Cable pulling winches
- Anti-twisting wire steel ropes
Purpose and Features
Retractable wire mill (belt drive) used to reclaim old conductors or overhead ground wires from a line.
| Item No. | Model | Rotation direction | Gear | Rotational speed (RPM) | Traction speed (M/MIN) | Tractive force(T) | Power(KW) | Outline(mm) | Weight(KG) |
|---|---|---|---|---|---|---|---|---|---|
| 08192 | JJQ-3/S 9HP Gasoline engine | corotation | I slow | 9.0 | 11.0 | 1.25 | 4.04 | 900*460*660 | 115 |
| Ⅱ fast | 18.0 | 22.0 | 0.75 | ||||||
| reversal | reverse | 8.0 | 10.0 | No lifting | |||||
| 08192A | JJC-3/S 4HP Diesel engine | corotation | I slow | 10.5 | 13.0 | 1.25 | 2.94 | 940*500*660 | 132 |
| Ⅱ fast | 19.0 | 23.0 | 0.75 | ||||||
| reversal | reverse | 9.0 | 11.0 | No lifting | |||||
| 08194 | JJQ-5/S 9HP Gasoline engine | corotation | I slow | 6.5 | 8.5 | 3.0 | 6.61 | 1000*720*600 | 155 |
| Ⅱ fast | 16.0 | 20.0 | 1.4 | ||||||
| reversal | reverse | 7.0 | 9.0 | No lifting | |||||
| 08193 | JJQ-5/S 6.6HP Diesel engine | corotation | I slow | 8.0 | 10.0 | 3.0 | 4.41 | 1000*850*520 | 188 |
| Ⅱ fast | 19.0 | 23.0 | 1.4 | ||||||
| reversal | reverse | 10.0 | 12.0 | No lifting |
