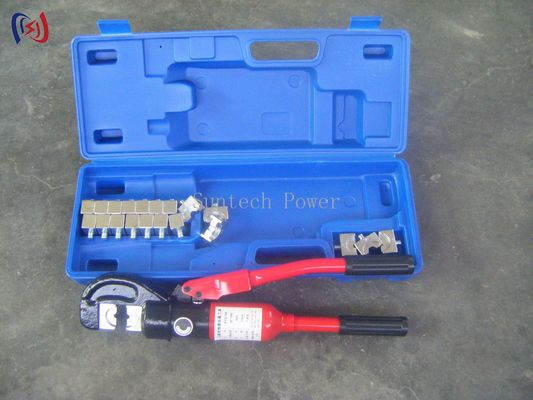

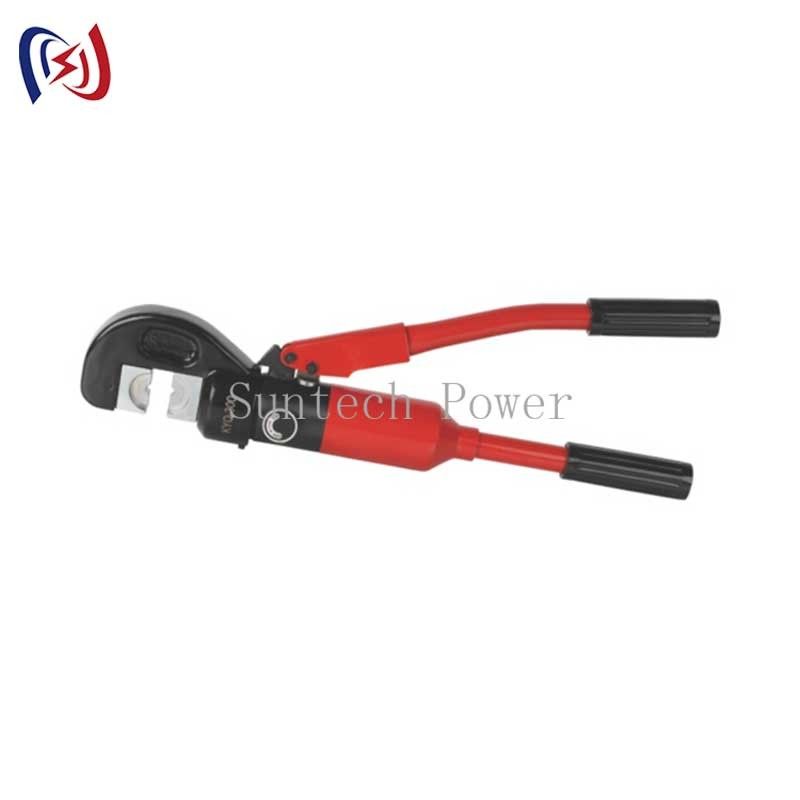

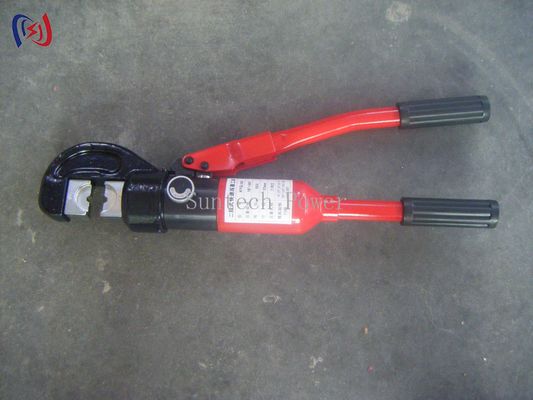

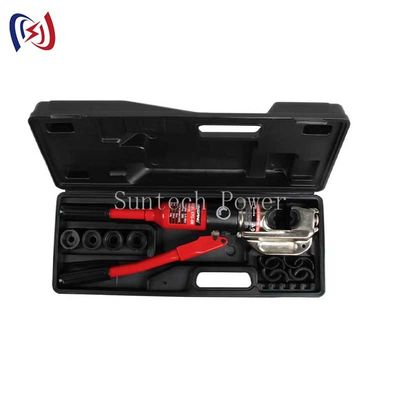

100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper

100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper
100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper 100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper 100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper 100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper

Large Image :  100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper Get Best Price

Product Details:
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: KYQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: L/C,T/T
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Name: Integeal Hydraulic Crimping Pliers Item No.: 16185-16186A
Crimping Force: 100/ 120KN Crimping Range: 16-400mm2
Crimping Type: Hexagon Crimping Dies: 16-400mm2
Stroke: 17/ 32mm Length: Approx. 500mm/ Approx.540mm
Weight: 7.7/ 9.5KG Package: Plastic Box
Warranty: 1 Year
Highlight:

120KN Quick Hydraulic Pliers

,

100KN Quick Hydraulic Pliers

,

Integral Hydraulic Wire Crimper

100KN 120KN Quick Hydraulic Pliers Integral Hydraulic Wire Crimper
KYQ Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer specializing in research, development, production and sales of power construction tools and equipment including:
  • Stringing Blocks
  • Hoisting Tackle
  • Wire Grips
  • Reel Stands
  • Inspection Trolleys
  • Tightening Tools
  • Connectors
  • Shackles
  • Lifters
  • Head Boards For Conductors
  • Mesh Sock Joints
  • Powered-winch
  • Press-machine
The company also serves as an agent for various imported construction tools and power equipment.
Pre-Operation Set-Up
  1. Open the relief valve to fully recess the piston, and close tightly.
  2. Rotate the yoke fully counter clockwise to bottom out the adapter seat.
Hydraulic Crimping Pliers Specification
Item number 16185 16186 16186A
Model KYQ-400 KYQ-300 KYQ-300C
Crimping force 120KN 100KN 100KN
Crimping range 16-400mm² 16-300mm² 16-300mm²
Type hexagon crimping hexagon crimping hexagon crimping
Dies 50,70,95,120,150,185,240,300,400mm² 16,25,35,50,70,95,120,150,185,240,300mm² 16,25,35,50,70,95,120,150,185,240,300mm²
Stroke 32mm 17mm 17mm
Length approx.540mm approx.500mm approx.500mm
Weight approx.N.W6.7KG G.W9.5KG approx.N.W4.9KG G.W7.7KG approx.N.W4.9KG G.W7.7KG
Package plastic box plastic box plastic box
