16mm-114mm Hydraulic Perforator Hydraulic Crimping Tools 100-150KN
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Perforator | Item No.: | 06241A |
|---|---|---|---|
| Model: | SYK-8A | Punching Range: | 16-114mm |
| Max Thickness Of Plate: | 3.5mm Mild Steel | Punching Force: | 100-150KN |
| Stroke: | 25mm | Weight: | 9.25-20KG |
| Highlight: | 114mm Hydraulic Perforator,16mm Hydraulic Perforator,Hydraulic Perforator Crimping Tools |
||

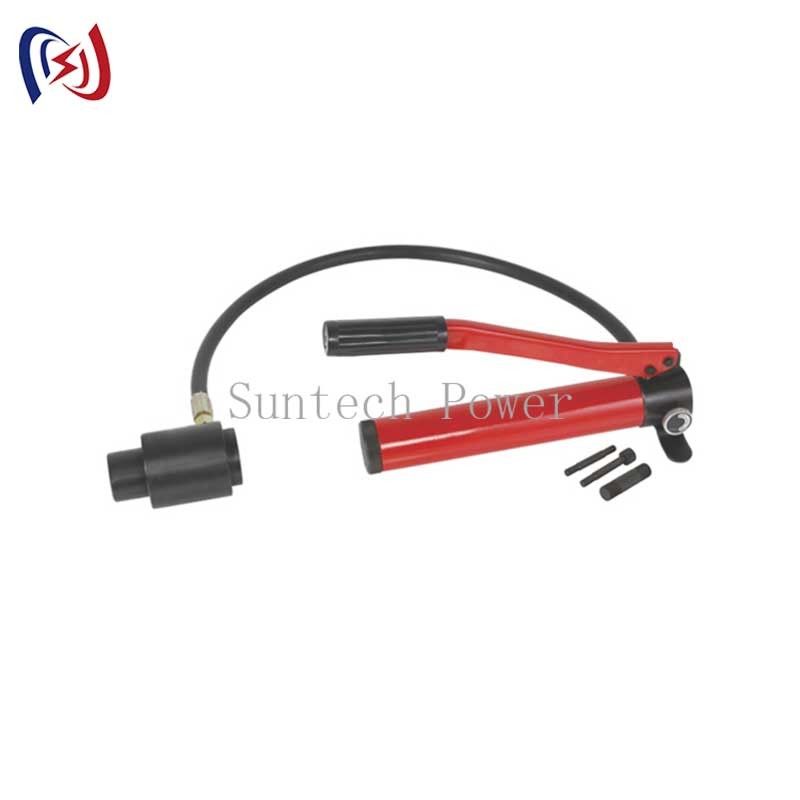

16mm-114mm Hydraulic Perforator Hydraulic Crimping Tools 100-150KN
Diamond-Coated Bits Drill 500 Holes Each, Cutting Consumable Costs by 40%
Product Overview

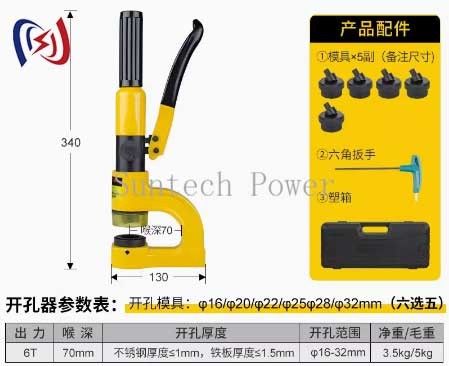

The Manual Hydraulic Perforator SYK-8A is a compact, hand-operated punching tool designed for precision hole creation in thin metals, plastics, and composite materials. Unlike bulky electric or pneumatic alternatives, it combines portability with hydraulic power for job sites without electricity.
Core Technical Features
- Hand-Pumped Hydraulic Mechanism
- Generates up to 15MPa pressure through a patented lever system (60:1 force ratio)
- Oil-free operation with self-contained biodegradable hydraulic fluid (ISO 15380 compliant)
- Requires only 8-10 manual strokes to achieve full punching pressure
- Precision Tooling System
- 6 interchangeable punch & die sets (3mm, 4mm, 5mm, 6mm, 8mm, 10mm diameters)
- Tungsten carbide coated cutting edges maintain sharpness for 3,000+ cycles
- Spring-loaded ejector automatically removes punched material
- Ergonomic Design
- Ultra-lightweight (3.4kg) aluminum body with textured rubber grip
- Rotating base plate (0-180° adjustable) for angled punching
- Integrated magnetic workpiece holder stabilizes thin sheets
Operational Advantages
- For Electricians
- Creates burr-free knockouts in 1-3mm electrical enclosures (UL 508A compliant)
- 20% faster than step-drilling for DIN rail mounting holes
- For Automotive Workshops
- Punches clean grommet holes in car body panels (0.8-3mm thickness)
- No heat distortion vs plasma cutting - preserves paint integrity
- For HVAC Installers
- Makes flanging holes for ductwork connections in 30 seconds
- 50% lighter than equivalent pneumatic punches
Maintenance Protocol
- Daily: Wipe dies with anti-rust cloth (included)
- Monthly: Add 2ml hydraulic fluid via sealed port
- Annual: Replace all O-rings (maintenance kit provided)

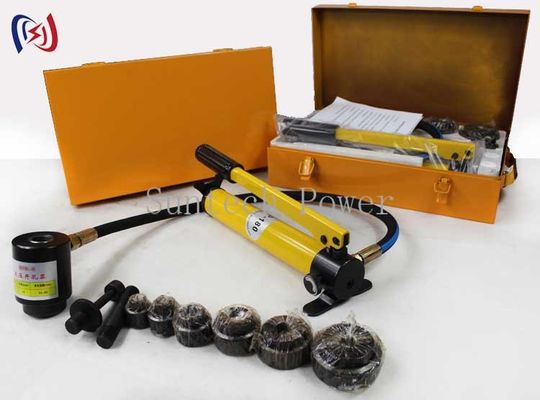

Package Contents
- Main tool body with pressure gauge
- 6 punch/die sets in foam organizer
- Carrying case (IP54 rated)
- 50ml hydraulic fluid bottle
- Multilingual manual (EN/ES/FR/DE)
Hydraulic Punching Tools Technical Data
| Item number | 06241A | 06241 | 06241B | 06241C | 06241D |
|---|---|---|---|---|---|
| Mode | SYK-8A | SYK-8B | SYK-15 | SYK-15A | SYK-15B |
| Punching range | Φ16mm-Φ51mm(5) | Φ22mm-Φ60mm(5) | Φ63mm-Φ114mm(5) | Φ63mm-Φ114mm(6) | Φ16mm-Φ114mm(18) |
| Max thickness of plate | 3.5mm mild steel | 3.5mm mild steel | 3.5mm mild steel | 3.5mm mild steel | 3.5mm mild steel |
| Punching force | 100KN | 100KN | 150KN | 150KN | 150KN |
| Stroke | 25mm | 25mm | 25mm | 25mm | 25mm |
| Weight | approx.N.W5.6KG G.W9.25KG | approx.N.W5.6KG G.W9.25KG | approx.N.W16KG G.W21KG | approx.N.W18KG G.W23KG | approx.N.W22KG G.W27KG |
| Package | plastic box | plastic box | steel case | steel case | steel case |
| Round type dies | Φ16mm,Φ20mm,Φ26.2mm,Φ35.2mm,Φ39mm,Φ51mm | Φ22mm,Φ27.5mm,Φ34mm,Φ43mm,Φ49mm,Φ60mm | Φ63mm,Φ76mm,Φ90mm,Φ101mm,Φ114mm | Φ63mm,Φ76mm,Φ80mm,Φ90mm,Φ101mm,Φ114mm | Φ16mm,Φ20mm,-Φ101mm,Φ114m |
