Copper Aluminum Hydraulic Busbar Cutter 200KN-300KN Cutting Force
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Copper Aluminum Bus Bar Cutter | Model: | CWC-150 |
|---|---|---|---|
| Cutting Force: | 200-300KN | Height: | 440-460mm |
| Weight: | 33-40KG | Warranty: | 1 Year |
| Highlight: | Aluminum Hydraulic Busbar Cutter 200KN,Copper Hydraulic Busbar Cutter,300KN Busbar Cutter |
||

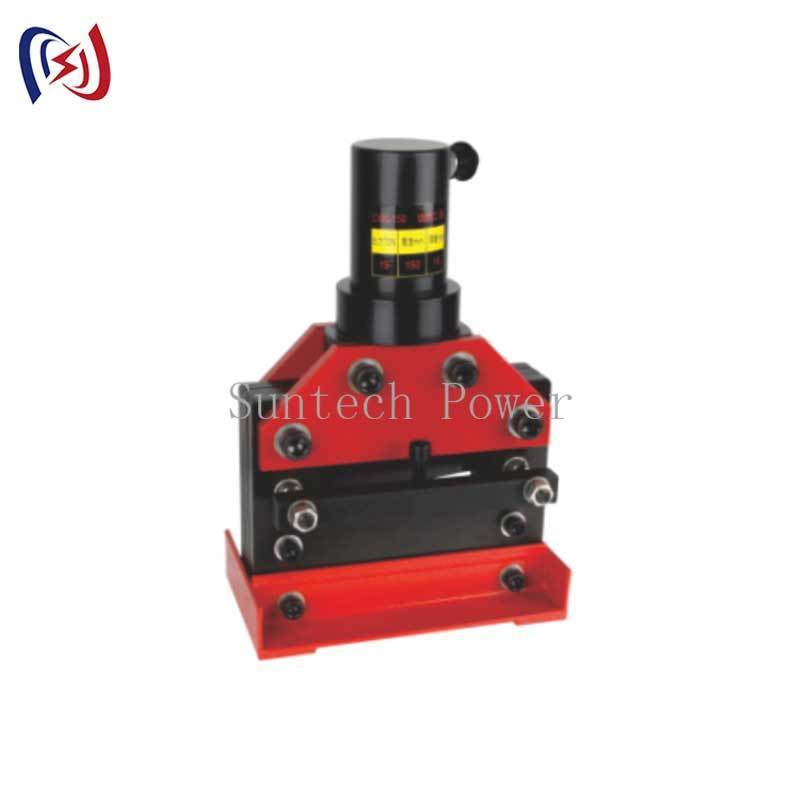

Copper Aluminum Hydraulic Busbar Cutter 200KN-300KN Cutting Force
Hydraulic Copper Aluminum Bus-bar Cutter Efficient Design For Bus-bar Processing
Professional Cutting Performance
- Delivers up to 12 tons of hydraulic pressure for clean bus-bar cuts
- Handles copper and aluminum bus-bars up to 150mm wide and 20mm thick
- Creates burr-free cuts in single operation
Industrial-Grade Construction
- Forged steel blade housing withstands extreme pressures
- Hardened steel blades stay sharp through thousands of cuts
- Corrosion-resistant coating for outdoor electrical work
Advanced Safety Features
- Automatic pressure relief valve prevents system overload
- Dual safety locks prevent accidental operation
- Visual blade condition indicator
Ergonomic Design Advantages
- Balanced weight distribution reduces operator fatigue
- Comfortable non-slip grips for all-day use
- Requires 50% less hand force than mechanical cutters
Comprehensive Applications
- Ideal for cutting:
- HV power distribution bus-bars
- Substation copper bars
- Aluminum bus-bar connections
- Switchgear components
- Electrical panel bus systems
Technical Specifications
| Item number | 06242 | 06242A |
|---|---|---|
| Model | CB-150D | CB-200A |
| Bending force | 170KN | 170KN |
| Max thickness of sheet | CU/AL plate 10mm | CU/AL plate 12mm |
| Width of sheet | CU/AL plate 150mm | CU/AL plate 200mm |
| Height | approx.250mm | approx.340mm |
| Weight | approx.N.W17KG G.W20.5KG | approx.N.W27KG G.W30.4KG |
| Package | wooden case | wooden case |
Package Contents
- Hydraulic cutter main unit
- Set of two replacement blades
- Heavy-duty carrying case
- Operation manual with safety guidelines
- Maintenance toolkit
Quality Assurance
- Each unit pressure tested before shipping
- Batch certification available
- ISO 9001 certified manufacturing
