Hand Hydraulic Crimping Tools 70KN-100KN Hydraulic Wire Cutter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Integral Hydraulic Cable Cutter | Item No.: | 21447A-21447F |
|---|---|---|---|
| Crimping Force: | 70-100KN | Stroke: | 40-85mm |
| Height: | Approx.620mm-Approx.820mm | Weight: | 8.9-13KG |
| Package: | Plastic Box/ Steel Case | Warranty: | 1 Year |
| Highlight: | Hand Hydraulic Crimping Tools 70KN,100KN Hydraulic Wire Cutter,70KN Hydraulic Wire Cutter |
||

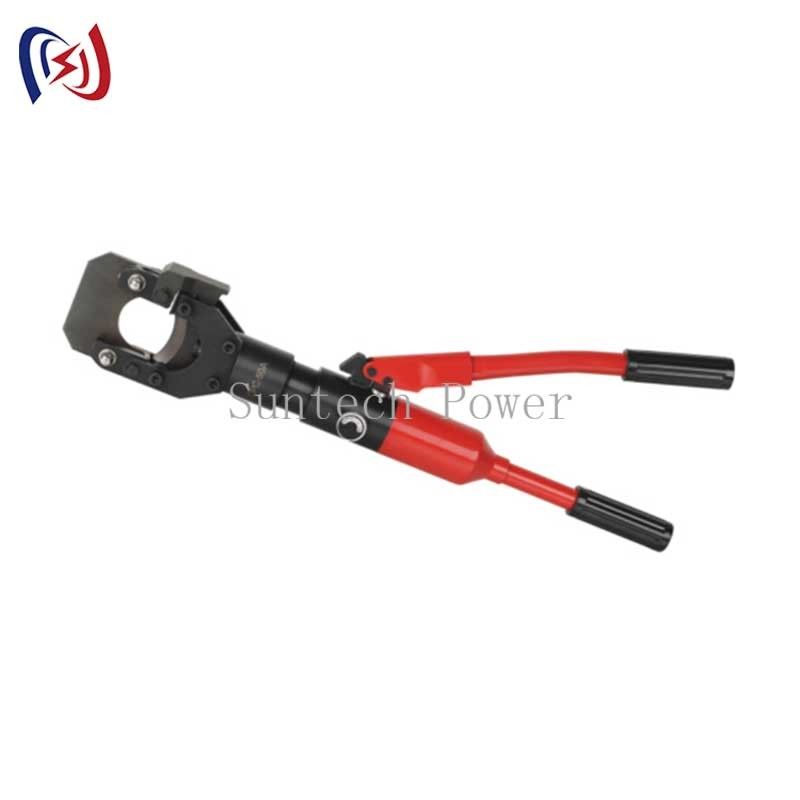

Hand Hydraulic Crimping Tools 70KN-100KN Hydraulic Wire Cutter
Integral Hydraulic Cable Cutter Hydraulic Crimping Plier
Suntech Power
Suntech Power is a manufacturer specializing in research, development, production and sales of power construction tools and equipment including Stringing Blocks, Hoisting Tackle, Wire Grips, Reel Stands, Inspection Trolleys, Tightening Tools, Connectors, Shackles, Lifters, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machines and other related equipment. We also serve as agents for various imported construction tools and power equipment.
Hydraulic Cable Cutter Introduction
- Hand operated hydraulic tool specifically designed to cut copper, aluminum and tel cables with maximum overall diameter from 40 to 85mm
- Features double speed action: fast advancing speed for rapid blade approach and slower, more powerful speed for cutting
- Blades manufactured from high strength special steel, heat treated for long service life
- Head can be easily opened to allow cutting of running cables
Hydraulic Cable Cutter Technical Data
| Item number | 21447A | 21447B | 21447C |
|---|---|---|---|
| Model | CC-50A | CPC-50A | HT-50A |
| Crimping force | 100KN | 80KN | 70KN |
| Cutting range | CU/AL cable Φ50mm max ACSR cable Φ50mm max armored CU/AL cable Φ50mm max strand Φ16mm max |
steel rope cable Φ18mm max steel strand Φ10mm max ACSR cable Φ50mm max armored CU/AL cable Φ50mm max |
steel rope cable Φ15mm max ACSR cable Φ50mm max armored CU/AL cable Φ50mm max |
| Stroke | 50mm | 50mm | 40mm |
| Length | approx.620mm | approx.620mm | approx.660mm |
| Weight | approx.N.W6.1KG G.W9.1KG | approx.N.W6.2KG G.W9.2KG | approx.N.W6.5KG G.W8.9KG |
| Package | plastic box | plastic box | plastic box |
| Item number | 21447D | 21447E | 21447F |
|---|---|---|---|
| Model | CPC-40FR | CPC-50FR | CPC-85FR |
| Crimping force | 70KN | 80KN | 80KN |
| Cutting range | steel rope cable Φ18mm max ACSR cable Φ40mm max armored CU/AL cable Φ40mm max steel strand Φ16mm max |
steel rope cable Φ18mm max ACSR cable Φ50mm max armored CU/AL cable Φ50mm max strand Φ16mm max |
armored CU/AL cable Φ85mm max |
| Stroke | 40mm | 50mm | 85mm |
| Length | approx.700mm | approx.710mm | approx.820mm |
| Weight | approx.N.W6KG G.W9KG | approx.N.W7KG G.W10KG | approx.N.W9.5KG G.W13KG |
| Package | plastic box | plastic box | steel case |
