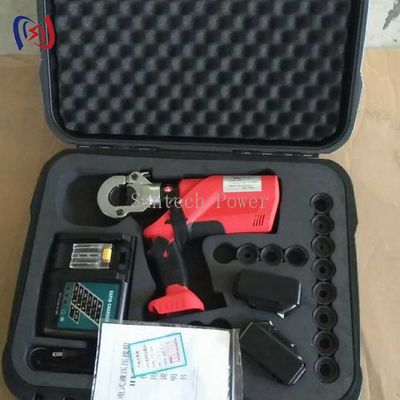

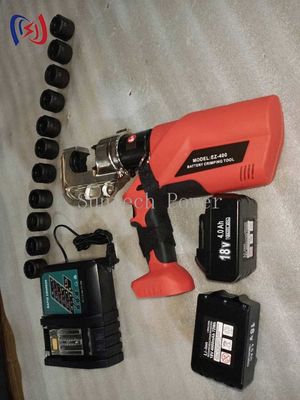

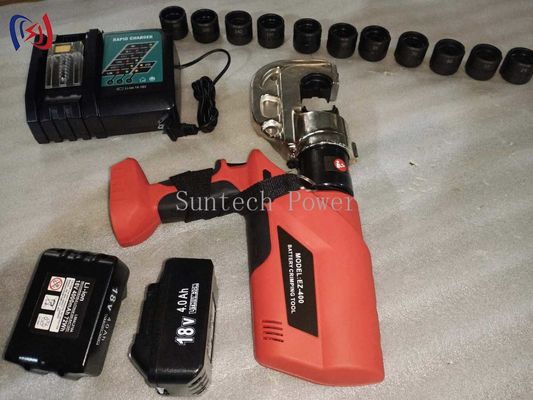

18V Battery Hydraulic Crimping Tool 60KN-250KN Hydraulic Battery Cable Crimper
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Battery Powered Hydraulic Crimping Pliers | Item No.: | 16209-16209B |
|---|---|---|---|
| Model: | HT-Z1-HT-Z3 | Crimping Foece: | 60-250KN |
| Stroke: | 17-35mm | Crimping Range: | 16-630mm2 |
| Crimp Charge: | 100-320times | Crimping Time: | 3-6s |
| Voltage: | 18V | Capacity: | 4Ah |
| Charging Time: | 2Hours | Weight: | 15-17KG |
| Package: | Plastic Box | Warranty: | 1 Year |
| Highlight: | 18V Battery Hydraulic Crimping Tool,Battery Hydraulic Crimping Tool 60KN,250KN Hydraulic Battery Cable Crimper |
||

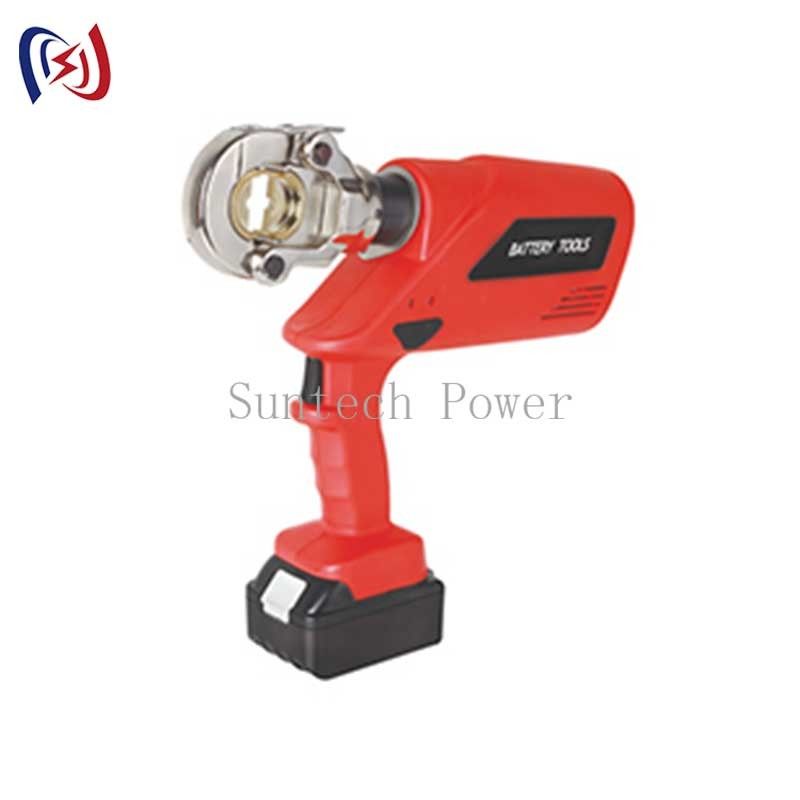

18V Battery Hydraulic Crimping Tool 60KN-250KN Hydraulic Battery Cable Crimper
Portable Electric Hydraulic Crimping Tool for Industrial Applications
Key Features
- Cordless Hydraulic Power - 18V lithium-ion battery eliminates manual pumping
- High-Speed Crimping - Full crimp cycle in 3-5 seconds (vs. 15+ sec manual)
- Precision Pressure Control - Auto-adjusts for perfect, gas-tight crimps every time
- Smart Digital Display - Shows pressure, battery level, and crimp count
- Long Battery Life - 150+ crimps per charge
- Weather-Resistant - IP54 rated for outdoor use
Technical Specifications
- Battery: 18V/5.0Ah Li-ion
- Die Sets: 16-400mm² (included) / up to 630mm² (optional)
- Crimp Speed: 3-5 seconds per cycle
- Charging Time: 120 minutes
Working Principle
The tool uses electric-hydraulic technology - the battery powers a micro-hydraulic pump that generates precise pressure for perfect crimps. The smart system automatically adjusts pressure based on die size and material.
Ideal Applications
- Power line construction & maintenance
- Substation cable terminations
- Industrial electrical installations
- Renewable energy projects (solar/wind farms)
- Railway electrification
- Shipbuilding & offshore power systems
Advantages Over Manual Tools
- 3x Faster - Complete crimps in seconds
- Consistent Quality - Every crimp meets IEC 61238 standards
- No Fatigue - Eliminates manual pumping
- Versatile - Works in any position, even overhead
Service & Support
- 1-Year Warranty
- Global Service Centers
- Die Replacement Program
Hydraulic Crimping Pliers Technical Data
| Item number | 16209A | 16209 |
|---|---|---|
| Model | HT-Z1 | HT-Z2 |
| Crimping force(KN) | 60KN | 60KN |
| Crimping range | 16-400mm² | 16-300mm² |
| Crimp charge | 250times(CU150mm²) | 320times(CU150mm²) |
| Crimping cycle | 3s-6s(depend on the size of cable) | 3s-6s(depend on the size of cable) |
| Stroke | 35mm | 17mm |
| voltage | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah |
| Charging time | 2hours | 2hours |
| Weight (kg) | approx.N.W10KG G.W17KG | approx.N.W8KG G.W15KG |
| Package | plastic box | plastic box |
