HT Integral Hydraulic Crimping Pliers 16mm2 - 400mm2 Hydraulic Wire Crimping Tool
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Integral Hydraulic Crimping Pliers | Item No.: | 16210/ 16210A |
|---|---|---|---|
| Crimping Force: | 60/ 120KN | Crimping Range: | 16-400mm2 |
| Crimping Type: | Texagon Crimping | Dies: | 16-400m2 |
| Stroke: | 17/32mm | Length: | Approx.460mm/ Approx.552mm |
| Weight: | 7.1/ 10.2KG | Package: | Aluminum Alloy Box |
| Warranty: | 1 Year | ||
| Highlight: | integral hydraulic crimping pliers,hydraulic crimping pliers 16mm2,400mm2 hydraulic wire crimping tool |
||

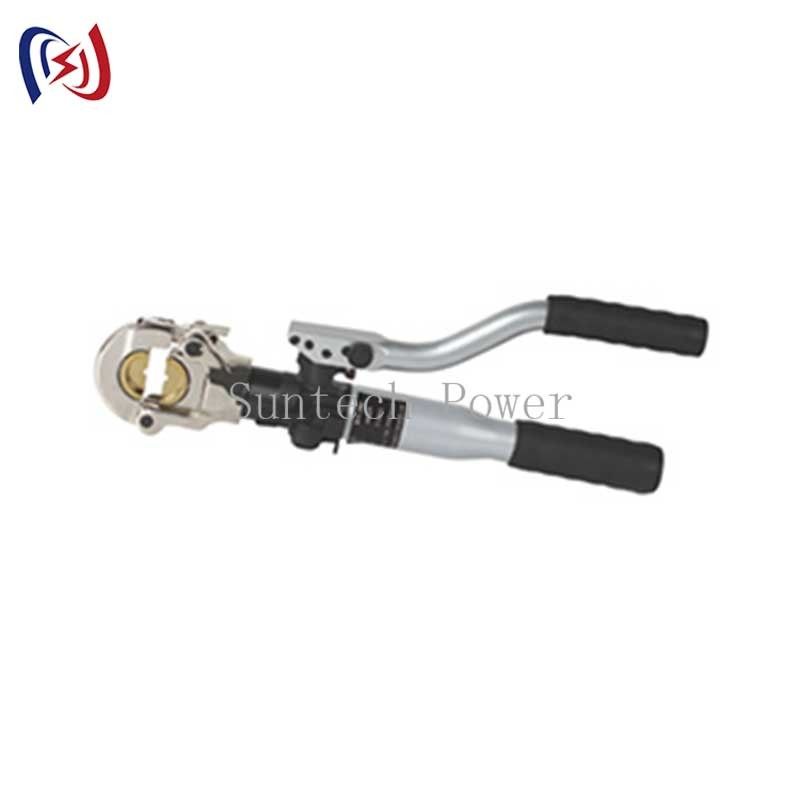

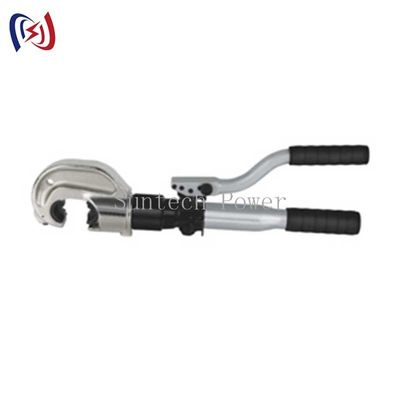

HT Integral Hydraulic Crimping Pliers 16mm² - 400mm² Hydraulic Wire Crimping Tool
Product Description
HT Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer specializing in research, development, production and sales of power construction tools and equipment including Stringing Blocks, Hoisting Tackles, Wire Grips, Reel Stands, Inspection Trolleys, Tightening Tools, Connectors, Shackles, Lifters, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machines and more. We also serve as agents for various imported construction tools and power equipment.
Key Features
- Crimping range: 50-400mm²
- Crimping force: 20t
- Crimping type: Hexagon crimping
- Stroke: 25mm
- Length: approx. 540mm
- Weight: approx. 8.30kg
- Package: Plastic box or steel case
- Weight of case: approx. 4.00kg
- Accessories: Crimping dies for 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
Hydraulic Crimping Pliers Specification
| Item number | 16210 | 16210A |
|---|---|---|
| Model | HT-300 | HT-400 |
| Crimping force | 60KN | 120KN |
| Crimping range | 16-300mm² | 16-400mm² |
| Type | Hexagon crimping | Hexagon crimping |
| Dies | 16,25,35,50,70,95,120,150,185,240,300mm² | 50,70,95,120,150,185,240,300,400mm² |
| Stroke | 17mm | 32mm |
| Length | approx. 460mm | approx. 552mm |
| Weight | approx. N.W 3.7KG, G.W 7.1KG | approx. N.W 6.8KG, G.W 10.2KG |
| Package | Aluminum alloy box | Aluminum alloy box |
