YJD Split Type Hydraulic Crimping Pliers Range 100mm Hydraulic Crimping Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Split-type Hydraulic Crimping Pliers | Item No.: | 16103-16106 |
|---|---|---|---|
| Crimping Force: | 60-300T | Crimping Range: | 14-100mm |
| Crimping Type: | Hexagon Crimping | Stroke: | 24/ 35mm |
| Height: | Approx.370mm/ Approx.480mm | Weight: | 30-130KG |
| Package: | Wooden Case | Warranty: | 1 Year |
| Highlight: | YJD Hydraulic Crimping Pliers,Split type Hydraulic Crimping Pliers,100mm Hydraulic Crimping Tools |
||

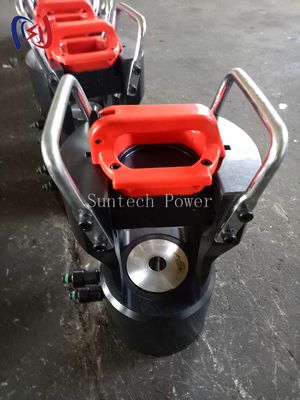

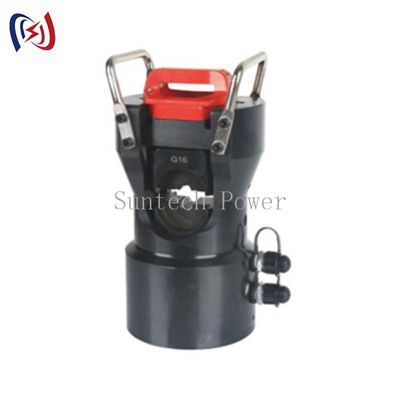

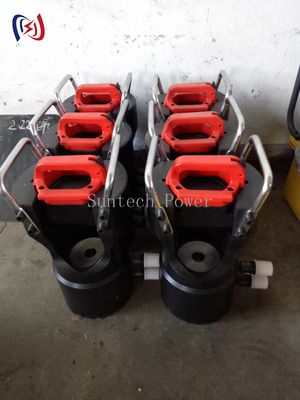

YJD Split Type Hydraulic Crimping Pliers Range 100mm Hydraulic Crimping Tools
Product Description
YJD Split-type Hydraulic Crimping Pliers Hydraulic Crimping Plier
Suntech Power is a manufacturer specializing in research, development, production and sales of power construction tools and equipment including Stringing Blocks, Hoisting Tackles, Wire Grips, Reel Stands, Inspection Trolleys, Tightening Tools, Connectors, Shackles, Lifters, Head Boards For Conductors, Mesh Sock Joints, Powered-winches, Press-machines and other construction tools. We also serve as agents for various imported construction tools and power equipment.
Heavy Duty Crimp Cable Description
- Split hydraulic crimping head compatible with hydraulic pumps
- Designed for crimping large size lugs
- Suitable for both outdoor and indoor distributor projects
- Specialized tool for various overhead cable connection and construction applications
Heavy Duty Crimp Cable Features
- Ideal for outdoor and indoor distributor house projects, specially designed for various overhead cable connections
- Provides tight crimping on 10kv-500kv high voltage cable casing pipes, clips nared ends and hexagon shapes
- Equipped with PT 3/8'' thread oil pipe coupler
- Compatible with pedal pumps, manual pumps and electric driven hydraulic pumps
Heavy Duty Crimp Cable Technical Data
| Item number | 16103 | 16103A | 16104 | 16105 | 16106 |
|---|---|---|---|---|---|
| Model | YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
| Crimping force | 60T | 100T | 125T | 200T | 300T |
| Crimping range | 14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
| Type | hexagon crimping | ||||
| Stroke | 24mm | 24mm | 35mm | 35mm | - |
| Height | approx.370mm | approx.480mm | - | - | - |
| Weight (KG) | approx.N.W20KG G.W30KG | approx.N.W30KG G.W40KG | approx.N.W50KG G.W60KG | approx.N.W85KG G.W95KG | approx.N.W120KG G.W130KG |
| Package | wooden case | ||||
