750W Electric Hydraulic Pump Single Acting / Double Acting Hydraulic Pump
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Pump | Item No.: | 16153-1/ 16153-2 |
|---|---|---|---|
| Type: | Single-acting / Double-acting | Rated Output: | 750W |
| Voltage: | 220W/380W | Rated Pressure: | 70Mpa |
| Oil Capacity: | 8L | Frequency: | 50-60HZ |
| Weight: | 29/30KG | Package: | Wooden Case |
| Warranty: | 1 Year | ||
| Highlight: | 750W Electric Hydraulic Pump,Electric Hydraulic Pump Single Acting,750W Double Acting Hydraulic Pump |
||

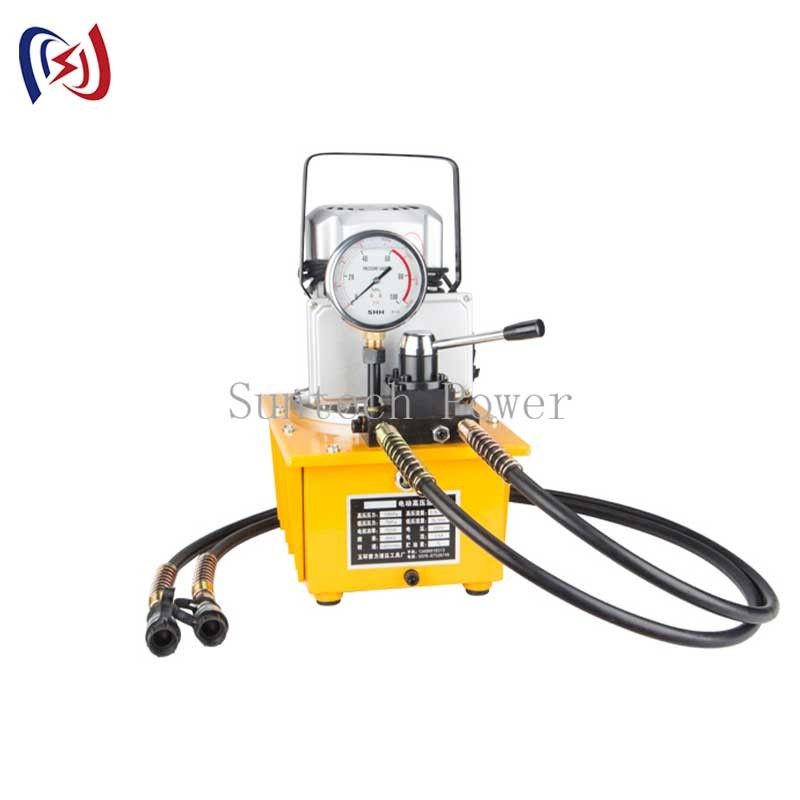

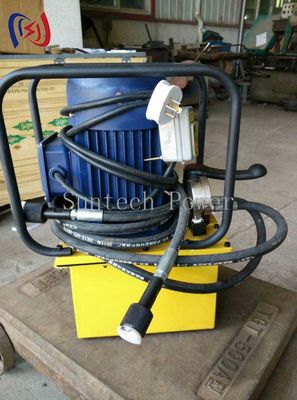

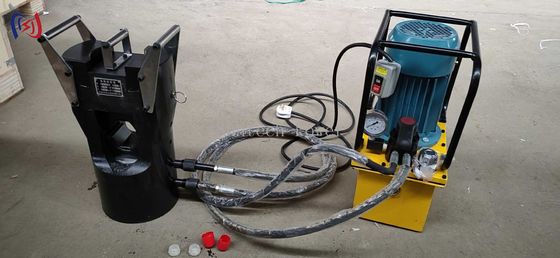

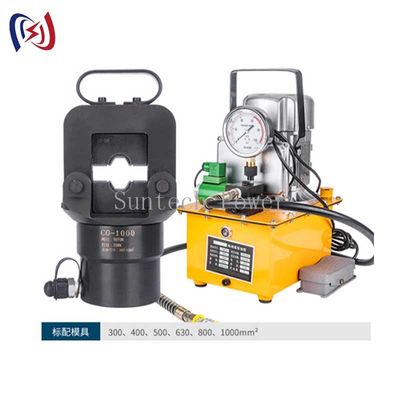

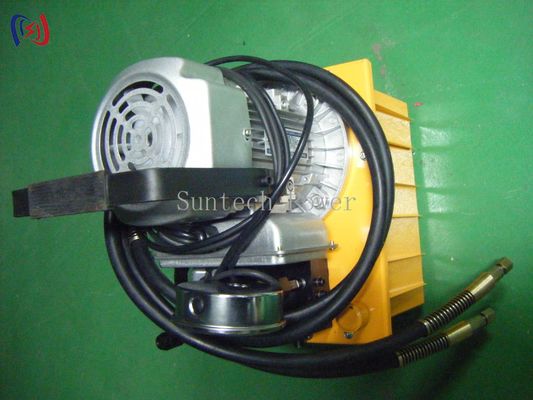

750W Electric Hydraulic Pump Single Acting / Double Acting Hydraulic Pump
Electric Hydraulic Pump Single Or Double Stage Hydraulic Pump Tools
Suntech Power Tools, located in southeast China, is the earliest origin Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tension and puller tools to support transmission work. All products are produced per ISO 9001:2008 and sold to over 50 countries worldwide with excellent brand reputation. We accept OEM orders and can customize items like stringing blocks, cable rollers, cable jack stands, etc. Construction Safety Tools have no MOQ requirements.
Our double speed high performance pumps feature a built-in 10000Psi pressure overflow valve to ensure maximum flow at maximum pressure. The standard oil window allows easy observation of oil level for normal operation assurance. Equipped with a low noise pure aluminum alloy enclosure motor, these lightweight pumps are convenient to move.
Optional long range wire control switch enables easy long-distance operation. Recommended for use with 200T hydraulic cylinders. The high and low speed two-stage design provides quick oil output, while turbine oil absorption ensures maximum effective oil volume. Over pressure safety valve unit prevents damage by automatically releasing at 700kg/cm².
Electric Hydraulic Pump Features
- Easy to operate with high safety
- Precise machining technique
- Long machine life
- Delicate and beautiful appearance design
- Broad applicable scope
- Good quality with minimal malfunctions
Technical Specifications
| Item number | 16153-1/A | 16153-2/A | 16153-3 |
|---|---|---|---|
| Model | ZCB6-5-AB | ZCB6-5-A3 | ZCB6-5-ABC |
| Type | double-acting | single-acting | Three-acting |
| Rated Output | 750W/1500W | 750W/1500W | 1500W |
| Voltage | 220W/380W | 220W/380W | 220V/380V |
| Rated Pressure | 70MPa | 70MPa | 70MPa |
| Flow Rate | low pressure 2.5L/Min high pressure 0.52(1.7)L/min |
low pressure 2.5L/Min high pressure 0.52(1.7)L/min |
low pressure 2.5L/Min high pressure 1.7L/min |
| Oil Capacity | 8L/30L | 8L/30L | 30L |
| Frequency | 50-60HZ | 50-60HZ | 50-60HZ |
| Weight | approx.N.W26KG G.W30KG | approx.N.W25KG G.W29KG | approx.N.W37KG G.W40KG |
| Package | wooden case | wooden case | wooden case |
