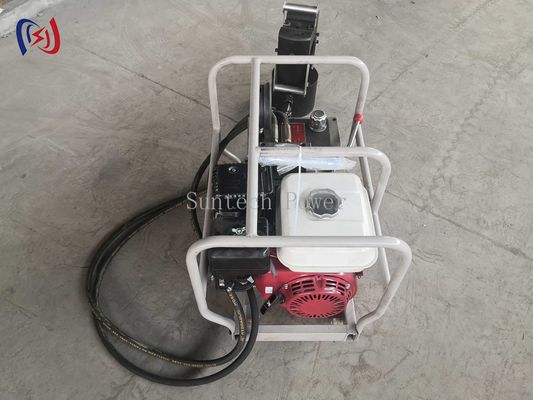

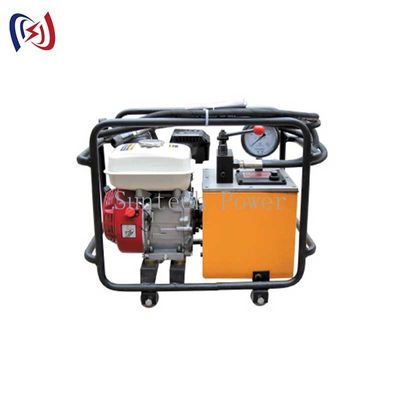

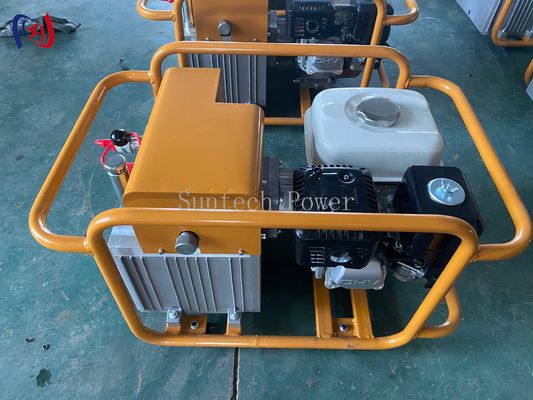

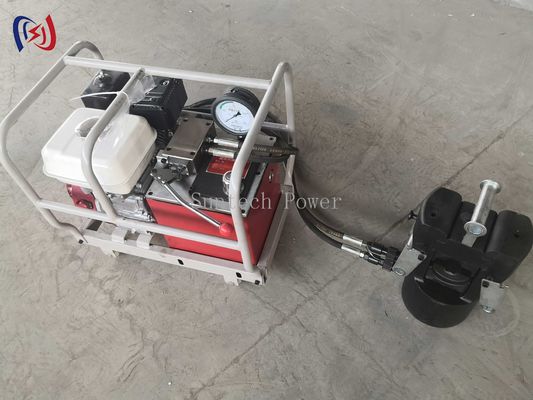

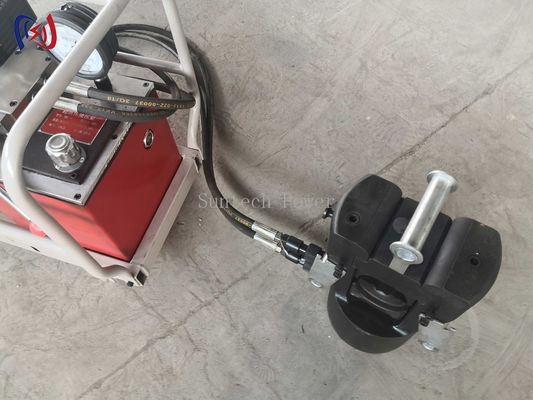

Double Stage High Pressure Hydraulic Pump 80Mpa 94L/Min Rated Flow

Large Image : Double Stage High Pressure Hydraulic Pump 80Mpa 94L/Min Rated Flow Get Best Price

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Suntech
Certification:	ISO9001
Model Number:	YBQA-80-03

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7-15days
Payment Terms:	L/C,T/T
Supply Ability:	1000 SET/Month

Contact Now

Detailed Product Description

Name:	Rapid Super High Pressure Hydraulic Pump(Doulbe-stage Pump Output)	Item No.:	16146A-16144A
Engine Tyde:	Gasoline Engine/ Diesel Engine /Electric Engine	Rated Pressure:	80Mpa
Max Oil Pressure:	94 Mpa	Rated Flow High:	94L/Min
Rated Flow Low:	1.6-11.02L/min	Weight:	45-65KG
Warranty:	1 Year
Highlight:	Double Stage High Pressure Hydraulic Pump , High Pressure Hydraulic Pump 80Mpa , 94L/Min High Pressure Hydraulic Pump

Double Stage High Pressure Hydraulic Pump 80Mpa 94L/Min Rated Flow

Double-Stage Pump Output Rapid Super High Pressure Hydraulic Pump

Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China. Our product range includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, cable reel stands, gin poles, inspection trolleys, hydraulic puller tensioners, conductor compressors, cable pulling winches, and anti-twisting wire steel ropes.

Application

This hydraulic pump provides power for cutting tools, hydraulic compressors, punching machines, and other construction machinery. It is designed for operation in field conditions across electric power, railway, rescue, and construction industries.

Technical Specifications

Item Number	Model	Engine Type	Power	Rated Pressure (MPa)	Max Oil Pressure (MPa)	Rated Flow (L/min)	Weight (kg)
16146A	YBQA-80-03	Gasoline engine	5.0HP	80	94	2.05 \| 11.02	55
16147A	YBCA-80-03	Diesel engine	4.0HP	80	94	2.05 \| 11.02	65
16144A	YBDA-80-03	Electric engine	3.0KW	80	94	1.6 \| 8	45
