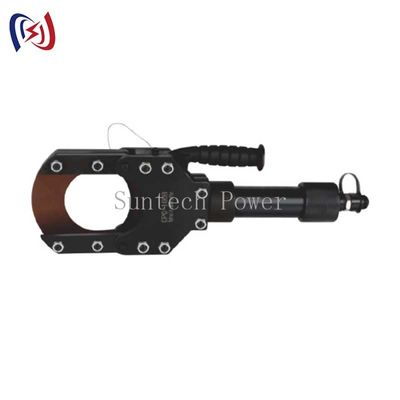

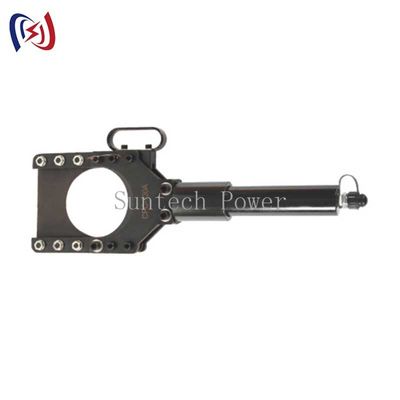

Industrial Split System Hydraulic Cable Shear For High Voltage Applications

• Exceptional Cutting Force: Delivers up to 8 tons for severing thick armored cables
• Precision Blades: Tungsten carbide cutting edges for clean cuts through steel-reinforced cables
• 360° Swivel Head: Allows cutting from any angle without repositioning the pump

• Cutting Capacity: 50mm to 300mm diameter cables (model dependent)
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

The system utilizes a detachable hand pump connected via high-pressure hose to the cutting head. When activated, hydraulic pressure forces the ultra-hardened blades through cable sheathing and conductors with minimal operator effort. The quick-connect couplings allow fast tool changes in the field.

• High-voltage transmission line installation and repair
• Substation maintenance and cable replacement
• Underground power cable termination
• Industrial plant shutdown operations
• Offshore wind farm cable systems
• Railway electrification projects
• Mining operations requiring explosive-proof tools

• Superior accessibility - pump can be positioned separately from cutting head
• Reduced operator fatigue - minimal physical effort required
• Versatile configuration - compatible with multiple blade sets
• Enhanced safety - remote operation keeps workers clear of dangerous areas
• Low maintenance - sealed hydraulic system with stainless steel components

• 1-year comprehensive warranty covering all components
• Emergency replacement program for critical projects
• Custom blade sharpening service
• 24/7 technical support hotline

The blades are manufactured from high strength special steel, heat treated to ensure a long service life. The head can be easily opened to allow the cutting of running cables. Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.
