Transmission Line Compact Tractor Winch Walking Tractor Drawn Winch Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Tractor-drawn Winch | Item No.: | 08126 |
|---|---|---|---|
| Traction Force: | 20-40KN | Traction Speed: | 11-38M/Min |
| Bottom Of Groove Diameter: | 300mm | Number Of Groove: | 6 |
| Weight: | 1740KG | Outline Size: | 2900x14000x1440mm |
| Warranty: | 1 Year | ||
| Highlight: | Transmission Line Compact Tractor Winch,Walking Tractor Drawn Winch Machine |
||

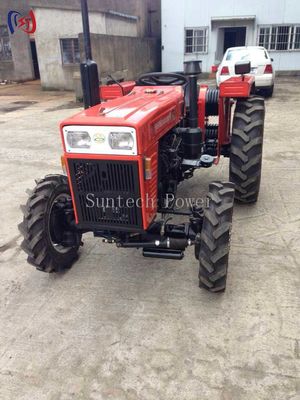

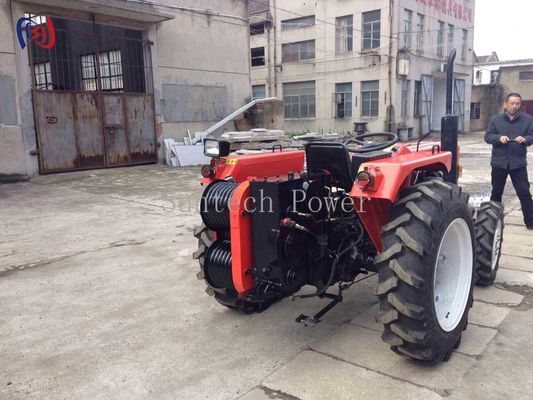

Transmission Line Compact Tractor Winch Walking Tractor Drawn Winch Machine
Product Description

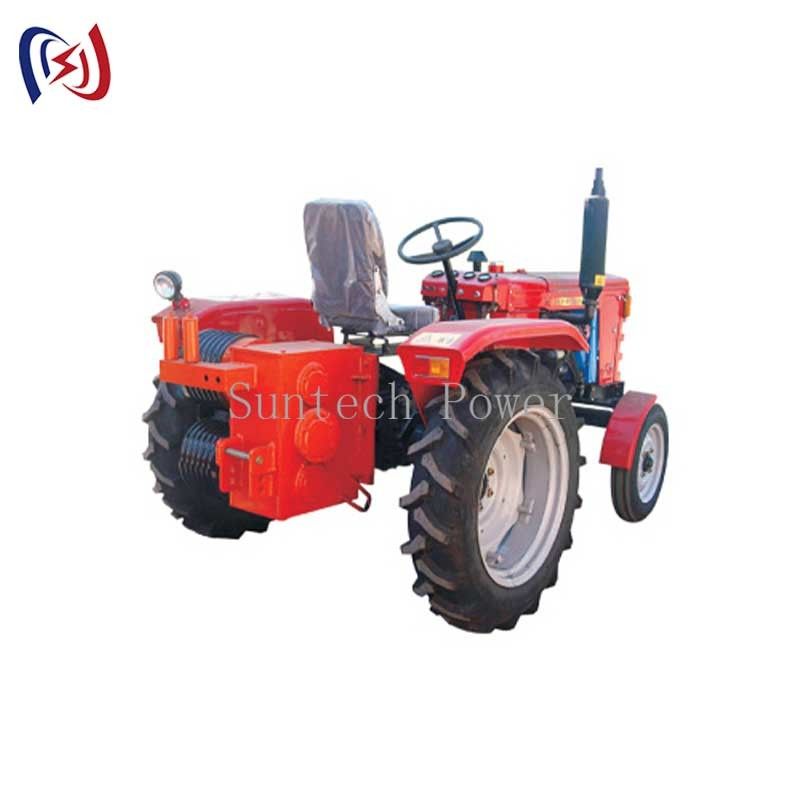

Tractor-drawn Winch Transmission Line Walking Tractor Drawn Winch Machine
Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China. Our product range includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, cable reel stands, gin poles, inspection trolleys, hydraulic puller tensioners, conductor compressors, cable pulling winches, and anti-twisting wire steel ropes.
Application

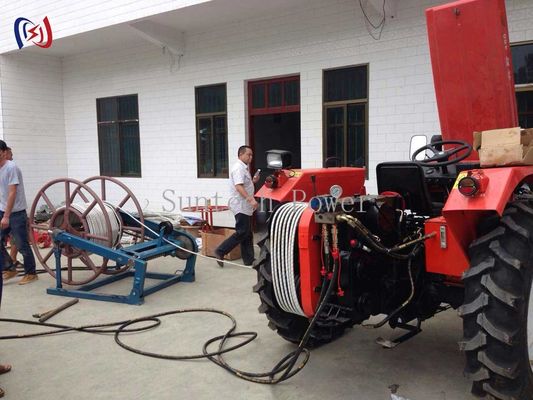

Fast Speed Double Drum Winch Tractor is designed for pulling and lifting during tower erection operations. It is specifically engineered to pull no-twist wire rope and is suitable for various construction applications including tower line installation, traction line operations, tight line operations, and cable laying.
Features
- Four-speed gear system with forward and reverse gears
- Double drum design with seven grooves to protect wire rope
- High-speed operation with convenient controls
- Modified from 12-type walking tractor design
- Compatible with four-wheel drive 304 type tractors or two-wheel drive 300 tractors (Item No. 08127)
Specifications
| Item number | 08126 | Power | 22KW | Model | SX4-V1 |
|---|---|---|---|---|---|
| Gear | Ⅰ | Ⅱ | Ⅲ | ReversalⅠ | |
| Traction force (KN) | 40 | 30 | 20 | - | |
| Traction speed (M/MIN) | 12 | 21 | 38 | 11 | |
| Bottom of groove diameter | Φ300mm | ||||
| Number of groove | 6 | ||||
| Weight | 1740kg | ||||
| Outline size | 2900x14000x1440mm | ||||
