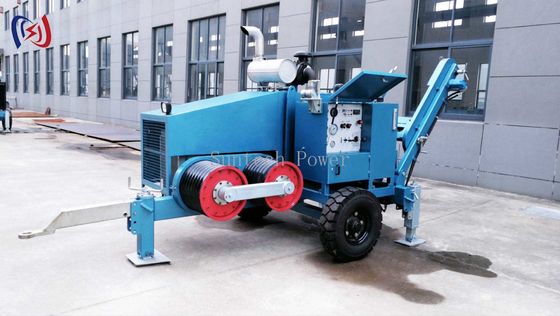

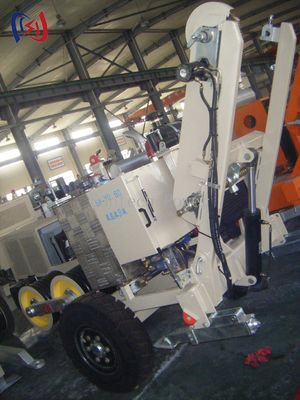

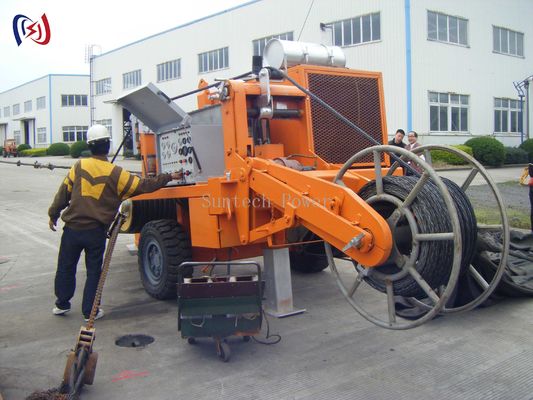

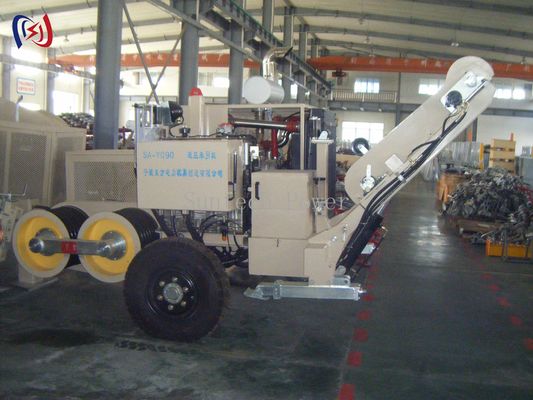

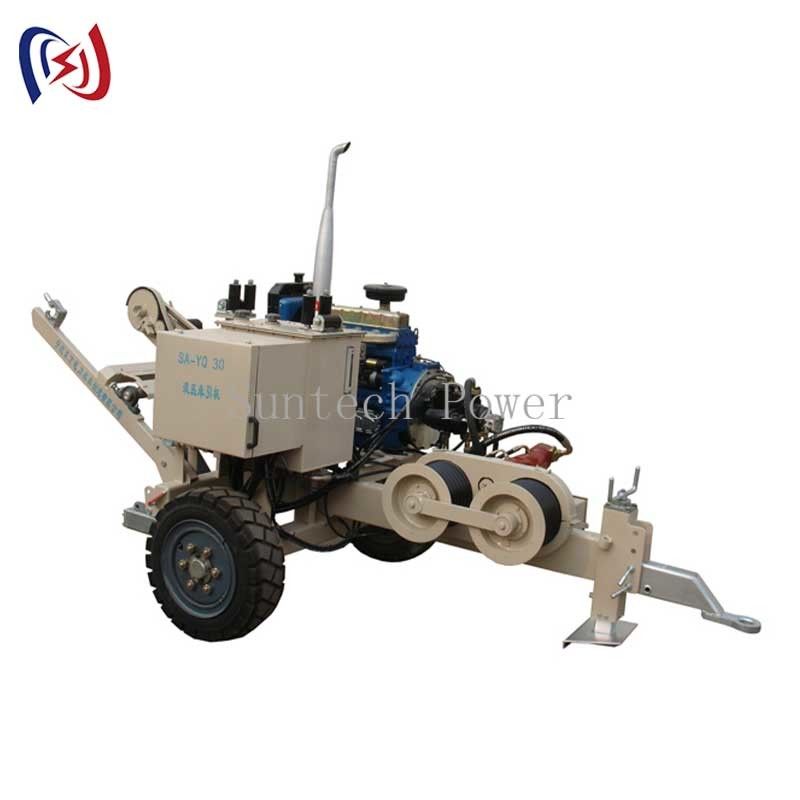

Underground Cable Pulling Machine 25KN-350KN Fiber Cable Pulling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Traction Equipment | Item No.: | 07001-07075 |
|---|---|---|---|
| Maximum Pull Force: | 5KM/H | Continuous Pull Force: | 25-350KN |
| Boattom Of Groovr Diamere: | 300-960mm | Number Of Groovr: | 7/9/10/11 |
| Warranty: | 1 Year | ||
| Highlight: | Underground Cable Pulling Machine 25KN,350KN Fiber Cable Pulling Machine,350KN Underground Cable Pulling Machine |
||
Underground Cable Pulling Machine 25KN-350KN Fiber Cable Pulling Machine
Hydraulic Traction Equipment With Wire Rope Automatic Winding Device
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools and hydraulic tension pullers for transmission work. All products are produced per ISO 9001:2008 standards and exported to over 50 countries worldwide. We accept OEM orders and offer customization for items like stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.
Technical Specifications
| Item No. | 07001 | 07011 | 07031 | 07041 | 07051 |
|---|---|---|---|---|---|
| Model | QY-30Y | QY-40Y | QY-60Y | QY-90Y | QY-180Y |
| Maximum pull force (KN) | 30 | 40 | 60 | 90 | 180 |
| Continuous pull force (KN) | 25 | 35 | 50 | 80 | 150 |
| Maximum pull force (KM/H) | 5 | 5 | 5 | 5 | 5 |
| Bottom of groove diameter (MM) | Φ300 | Φ400 | Φ460 | Φ520 | Φ630 |
| Number of groove (MM) | 7 | 7 | 7 | 7 | 9 |
| Maximum suitable steel rope diameter (MM) | Φ13 | Φ16 | Φ18 | Φ20 | Φ24 |
| Maximum through connectors diameter (MM) | Φ40 | Φ50 | Φ60 | Φ60 | Φ63 |
| Engine power/speed (KW/RPM) | 31/2200 | 60/2000 | 77/2800 | 123/2500 | 209/2100 |
| Dimensions (M) | 3.2*1.6*2 | 3.5*2*2.3 | 3.8*2.1*2.3 | 3.5*2.1*2.5 | 5.5*2.2*2.6 |
| Weight (KG) | 1500 | 2500 | 3000 | 4300 | 7500 |
| Matching wire rope tray Model | GSP950 | GSP1400 | GSP1400 | GSP1400 | GSP1600 |
| Matching wire rope tray Item No. | 07125A | 07125C | 07125C | 07125C | 07125D |
