40KN Underground Cable Pulling Tools 5KM/H Underground Cable Pulling Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Tension Equipment | Item No.: | 07212-07201 |
|---|---|---|---|
| Maximum Tension: | 7.5-40KN | Continuous Tension: | 7.5-35KN |
| Maximum Speed: | 5KM/H | Weight: | 450-10500KG |
| Warranty: | 1 Year | ||
| Highlight: | 40KN Underground Cable Pulling Tools,Underground Cable Pulling Tools 5KM/H,5KM/H Underground Cable Pulling Equipment |
||

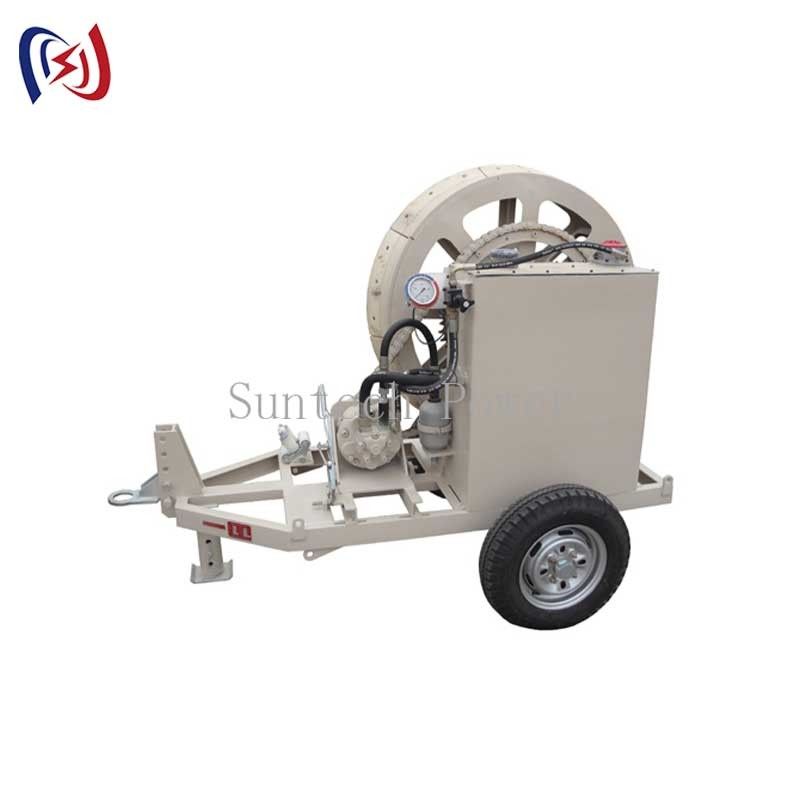

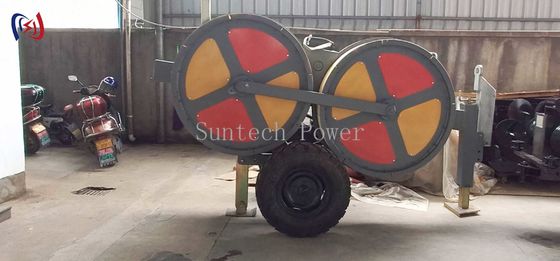

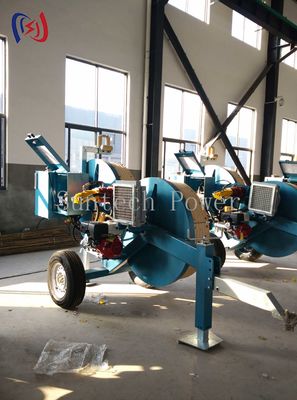

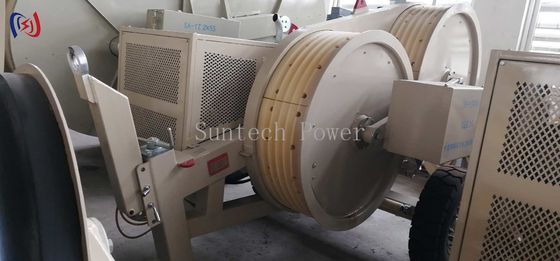

40KN Underground Cable Pulling Tools 5KM/H Underground Cable Pulling Equipment
Hydraulic Tension Equipment Attached Two Sets Of Hydraulic Power Output Interface To Connect Hydraulic Conductor Reel Stand
About us: Suntech Power Tools, located in southeast China, is the earliest origin Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tension and puller equipment to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation.
We accept OEM orders and can customize items like stringing blocks, cable rollers, cable jack stands, etc. Construction Safety Tools have no minimum order quantity requirements.
Product Specifications
| Item No. | 07212 | 07155 | 07171 |
|---|---|---|---|
| Model | SA-YZM7.5 | SA-YZ30A | SA-YZ40A |
| Maximum Tension(KN) | 7.5 | 30 | 40 |
| Continuous Tension(KN) | 7.5 | 25 | 35 |
| Maximum speed(KM/H) | 40m/minute | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1100 | Φ1200 | Φ1200 |
| Number of groove(MM) | / | 5 | 5 |
| Number of groove(KN) | / | 20 | 40 |
| Maximum speed back(KM/H) | / | / | 3 |
| Maximum suitable conductor diameter(MM) | / | Φ32 | Φ32 |
| Engine power/speed(KW/RPM) | / | 11/2200 | 51/2500 |
| Dimensions(M) | 2.3*1.2*1.6 | 3.6*1.8*2.4 | 3.4*1.8*2.4 |
| Weight(KG) | 450 | 1700 | 2800 |
| Item No. | 07181 | 07192 | 07197 |
|---|---|---|---|
| Model | SA-YZ2*35 | SA-YZ2*40B | SA-YZ2*55 |
| Maximum Tension(KN) | 2*35/1*70 | 2*40/1*80 | 2*55/1*110 |
| Continuous Tension(KN) | 2*30/1*60 | 2*35/1*70 | 2*50/1*100 |
| Maximum speed(KM/H) | 5 | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1200 | Φ1500 | Φ1600 |
| Number of groove(MM) | 2*5 | 2*5 | 2*5 |
| Number of groove(KN) | 2*30/1*60 | 2*40/1*80 | 2*50/1*100 |
| Maximum speed back(KM/H) | 2*2.1 | 2*1.5 | 2*2.1 |
| Maximum suitable conductor diameter(MM) | Φ32 | Φ40 | Φ42.5 |
| Engine power/speed(KW/RPM) | 51/2500 | 51/2500 | 54/2500 |
| Dimensions(M) | 4.4*2.1*2.6 | 4.5*2.2*2.8 | 5.0*2.3*2.7 |
| Weight(KG) | 4000 | 4850 | 7500 |
