25KN-350KN Hydraulic Cable Puller Transmission Line Hydraulic Wire Puller
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Traction Equipment | Item No.: | 07001-07075 |
|---|---|---|---|
| Maximum Pull Force: | 5KM/H | Continuous Pull Force: | 25-350KN |
| Bottom Of Groovr Diamere: | 300-960mm | Number Of Groovr: | 7/9/10/11 |
| Maxumum Suitable Steel Rope Diameter: | 13-45mm | Maximum Through Connectors Diameter: | 40-80mm |
| Weight: | 1500-14800KG | Warranty: | 1 Year |
| Highlight: | 350KN Hydraulic Cable Puller,25KN Hydraulic Cable Puller,Transmission Line Hydraulic Wire Puller |
||

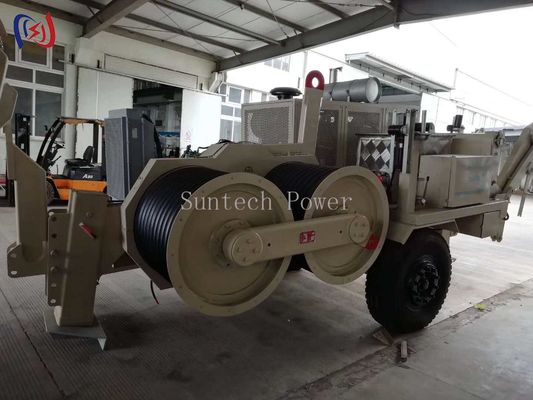

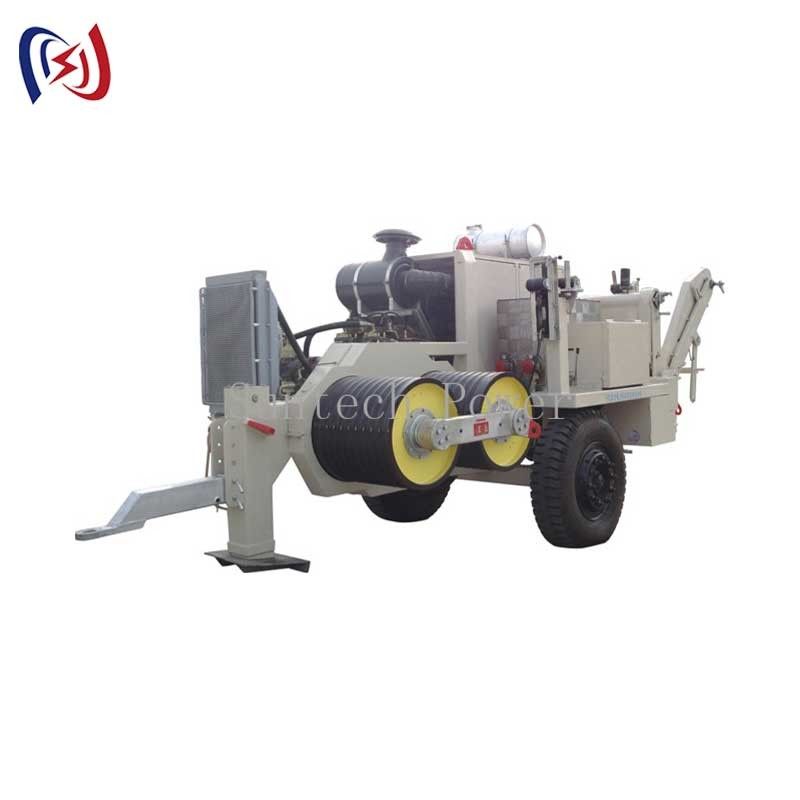

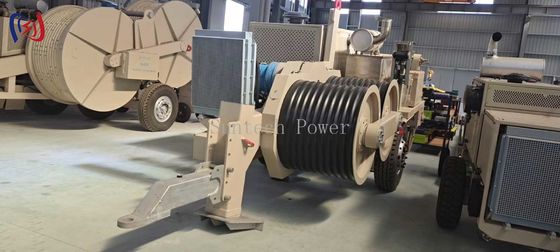

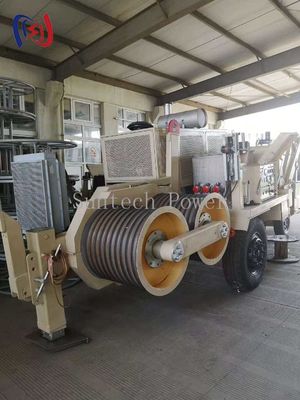

25KN-350KN Hydraulic Cable Puller Transmission Line Hydraulic Wire Puller
Hydraulic Traction Equipment for Transmission Line Stringing
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools in China. We specialize in manufacturing cable pulling tools and hydraulic tension equipment for transmission work. All products are produced per ISO 9001:2008 standards and exported to over 50 countries worldwide. We accept OEM requests and offer customization for items like stringing blocks, cable rollers, and jack stands. No minimum order quantity required for construction safety tools.
Key Features
- Traction force and speed are stepless adjustable with intuitive display
- Maximum traction display with overload automatic protection
- Automatic breaking without pressure for operational safety during engine flameout
- Wire rope automatic winding device for convenient loading/unloading
- Automatic rope laying system
Technical Specifications
| Item No. | 07001 | 07011 | 07031 | 07041 | 07051 |
|---|---|---|---|---|---|
| Model | QY-30Y | QY-40Y | QY-60Y | QY-90Y | QY-180Y |
| Maximum pull force (KN) | 30 | 40 | 60 | 90 | 180 |
| Continuous pull force (KN) | 25 | 35 | 50 | 80 | 150 |
| Maximum pull speed (KM/H) | 5 | 5 | 5 | 5 | 5 |
| Bottom of groove diameter (MM) | Φ300 | Φ400 | Φ460 | Φ520 | Φ630 |
| Number of groove | 7 | 7 | 7 | 7 | 9 |
| Maximum suitable steel rope diameter (MM) | Φ13 | Φ16 | Φ18 | Φ20 | Φ24 |
| Maximum through connectors diameter (MM) | Φ40 | Φ50 | Φ60 | Φ60 | Φ63 |
| Engine power/speed (KW/RPM) | 31/2200 | 60/2000 | 77/2800 | 123/2500 | 209/2100 |
| Dimensions (M) | 3.2×1.6×2 | 3.5×2×2.3 | 3.8×2.1×2.3 | 3.5×2.1×2.5 | 5.5×2.2×2.6 |
| Weight (KG) | 1500 | 2500 | 3000 | 4300 | 7500 |
| Matching wire rope tray | GSP950 | GSP1400 | GSP1400 | GSP1400 | GSP1600 |
| Item No. | 07125A | 07125C | 07125C | 07125C | 07125D |
