1 X 180KN Hydraulic Traction Equipment Overhead Line Stringing Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Tension Equipment | Item No.: | 07212-07201 |
|---|---|---|---|
| Maximum Tension: | 7.5-2x90/1x180KN | Continuous Tension: | 7.5-2x80/1x160KN |
| Bottom Of Groovr Diamere: | 1100-1850mm | Number Of Groovr: | 20-2x90/1x180KN |
| Maximum Speed Back: | 3-2x1.7KM/H | Weight: | 450-10500KG |
| Warranty: | 1 Year | ||
| Highlight: | 1 x 180kn hydraulic traction equipment,hydraulic overhead line stringing equipment,traction overhead line stringing equipment |
||

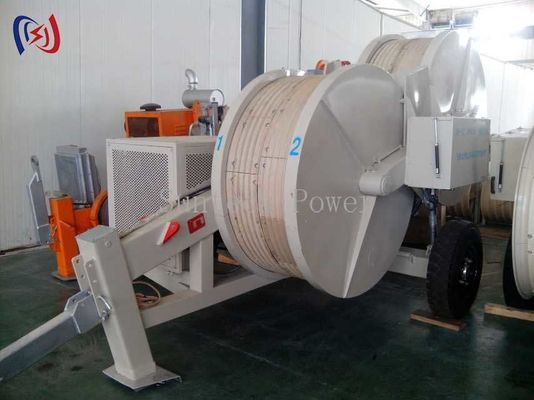

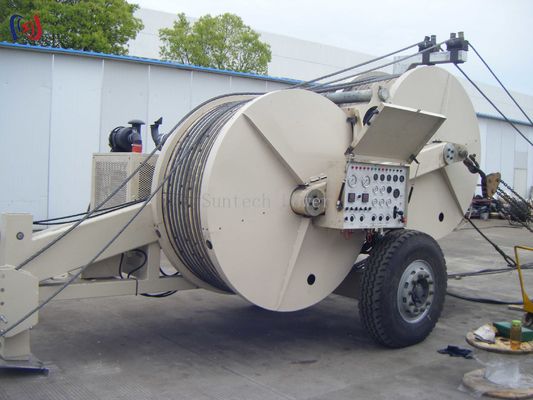

1 X 180KN Hydraulic Traction Equipment Overhead Line Stringing Equipment
Hydraulic Traction Equipment Overhead Line Stringing Equipment
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools, hydraulic tension and puller equipment to support transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide, earning excellent brand reputation.
Key Features
- Bull wheel with wear-proof MC nylon lining segments
- Infinitely variable tension control and constant tension conductor stringing
- Spring-applied hydraulic released brake acts automatically in emergency cases
- Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand
Technical Specifications
| Item No. | 07212 | 07155 | 07171 |
|---|---|---|---|
| Model | SA-YZM7.5 | SA-YZ30A | SA-YZ40A |
| Maximum Tension(KN) | 7.5 | 30 | 40 |
| Continuous Tension(KN) | 7.5 | 25 | 35 |
| Maximum speed(KM/H) | 40m/minute | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1100 | Φ1200 | Φ1200 |
| Number of groove(MM) | / | 5 | 5 |
| Number of groove(KN) | / | 20 | 40 |
| Maximum speed back(KM/H) | / | / | 3 |
| Maximum suitable conductor diameter(MM) | / | Φ32 | Φ32 |
| Engine power/speed(KW/RPM) | / | 11/2200 | 51/2500 |
| Dimensions(M) | 2.3*1.2*1.6 | 3.6*1.8*2.4 | 3.4*1.8*2.4 |
| Weight(KG) | 450 | 1700 | 2800 |
| Item No. | 07181 | 07192 | 07197 |
|---|---|---|---|

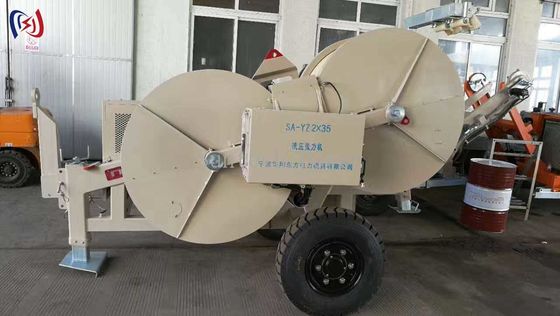

| Model | SA-YZ2*35 | SA-YZ2*40B | SA-YZ2*55 |
| Maximum Tension(KN) | 2*35/1*70 | 2*40/1*80 | 2*55/1*110 |
| Continuous Tension(KN) | 2*30/1*60 | 2*35/1*70 | 2*50/1*100 |
| Maximum speed(KM/H) | 5 | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1200 | Φ1500 | Φ1600 |
| Number of groove(MM) | 2*5 | 2*5 | 2*5 |
| Number of groove(KN) | 2*30/1*60 | 2*40/1*80 | 2*50/1*100 |
| Maximum speed back(KM/H) | 2*2.1 | 2*1.5 | 2*2.1 |
| Maximum suitable conductor diameter(MM) | Φ32 | Φ40 | Φ42.5 |
| Engine power/speed(KW/RPM) | 51/2500 | 51/2500 | 54/2500 |
| Dimensions(M) | 4.4*2.1*2.6 | 4.5*2.2*2.8 | 5.0*2.3*2.7 |
| Weight(KG) | 4000 | 4850 | 7500 |
