Hydraulic Traction Overhead Line Stringing Equipment Force Speed Stepless Adjustable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Traction Equipment | Item No.: | 07001-07051 |
|---|---|---|---|
| Weight: | 1500-7500G | Maximum Suitable Steel Rope Diameter: | 13-24mm |
| Maximum Through Connectors Diameter: | 40-63mm | Warranty: | 1 Year |
| Highlight: | 1500G Overhead Line Stringing Equipment,7500G Overhead Line Stringing Equipment,1500G Hydraulic Traction Equipment |
||

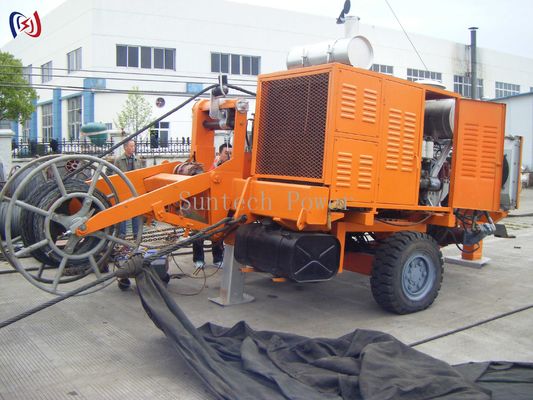

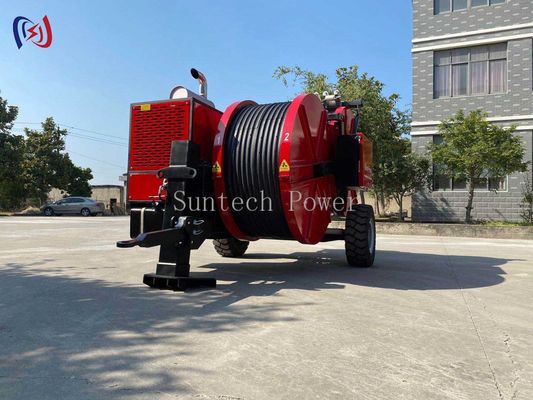

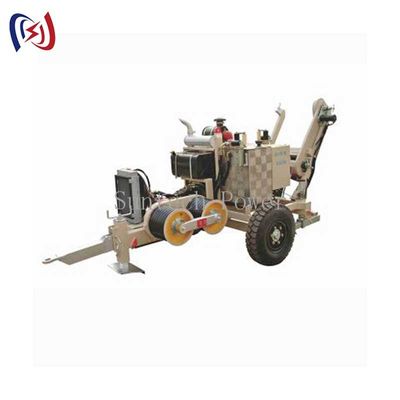

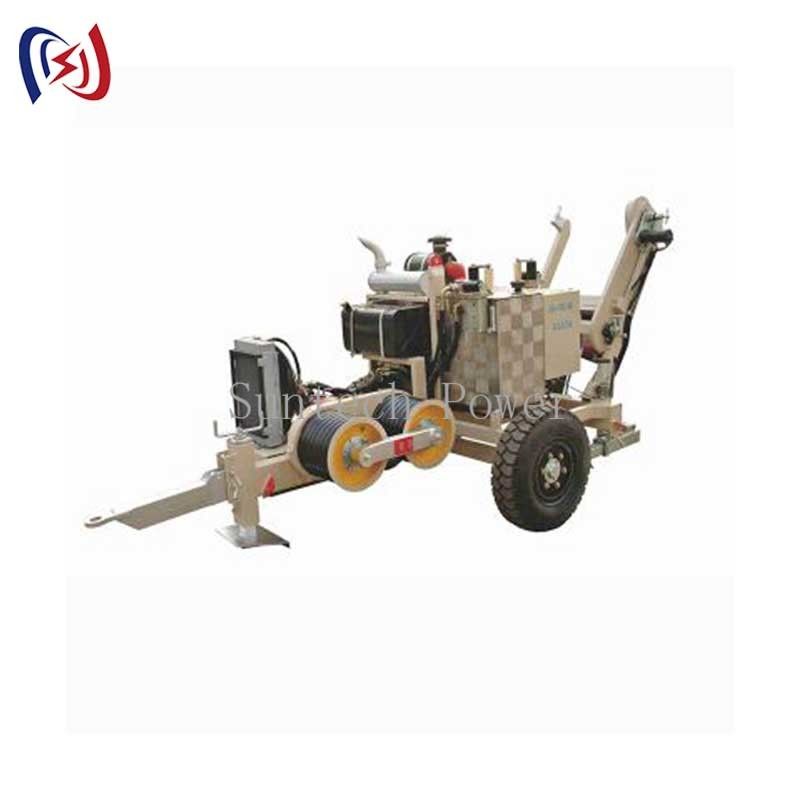

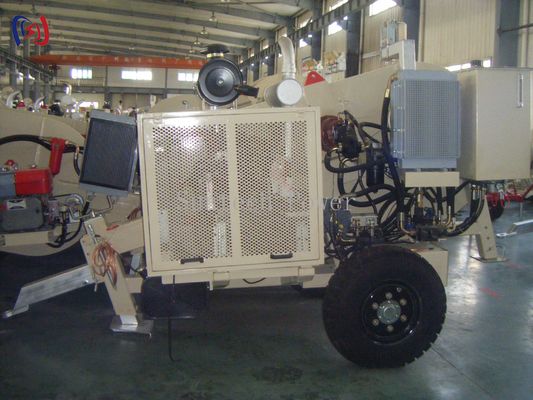

Hydraulic Traction Overhead Line Stringing Equipment
Force Speed Stepless Adjustable
This hydraulic traction equipment features stepless adjustable traction force and speed, designed for efficient overhead line stringing operations.
Product Specifications
| Item No. | 07001 | 07011 | 07031 | 07041 | 07051 |
|---|---|---|---|---|---|
| Model | QY-30Y | QY-40Y | QY-60Y | QY-90Y | QY-180Y |
| Maximum pull force (KN) | 30 | 40 | 60 | 90 | 180 |
| Continuous pull force (KN) | 25 | 35 | 50 | 80 | 150 |
| Maximum pull speed (KM/H) | 5 | 5 | 5 | 5 | 5 |
| Bottom of groove diameter (MM) | Φ300 | Φ400 | Φ460 | Φ520 | Φ630 |
| Number of groove | 7 | 7 | 7 | 7 | 9 |
| Maximum suitable steel rope diameter (MM) | Φ13 | Φ16 | Φ18 | Φ20 | Φ24 |
| Maximum through connectors diameter (MM) | Φ40 | Φ50 | Φ60 | Φ60 | Φ63 |
| Engine power/speed (KW/RPM) | 31/2200 | 60/2000 | 77/2800 | 123/2500 | 209/2100 |
| Dimensions (M) | 3.2×1.6×2 | 3.5×2×2.3 | 3.8×2.1×2.3 | 3.5×2.1×2.5 | 5.5×2.2×2.6 |
| Weight (KG) | 1500 | 2500 | 3000 | 4300 | 7500 |
| Matching wire rope tray Model | GSP950 | GSP1400 | GSP1400 | GSP1400 | GSP1600 |
| Matching wire rope tray Item No. | 07125A | 07125C | 07125C | 07125C | 07125D |
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools Leading City in China. We specialize in cable pulling tools and hydraulic tension equipment for transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.
We accept OEM orders and offer customization for items like stringing blocks, cable rollers, and jack stands. No minimum order quantity required for construction safety tools.
