Inner Suspended Lattice Gin Pole Tower Erection Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Inner-suspended Lattice Gin Pole | Item No.: | 03131-03605 |
|---|---|---|---|
| Range: | 8-32M | Section: | 300x300-700x700mm |
| Main Part Size: | 50x50x4-80x80x6mm | Accessory Size: | 25x25x3-50x50x4mm |
| Vertical Load: | 38-13---294-115KN | Safety Factor: | 2.5K |
| Weight: | 10.5-75 KG/M | Warranty: | 1 Year |
| Highlight: | inner suspended crowbar hand tools,inner suspended tower erection tools |
||

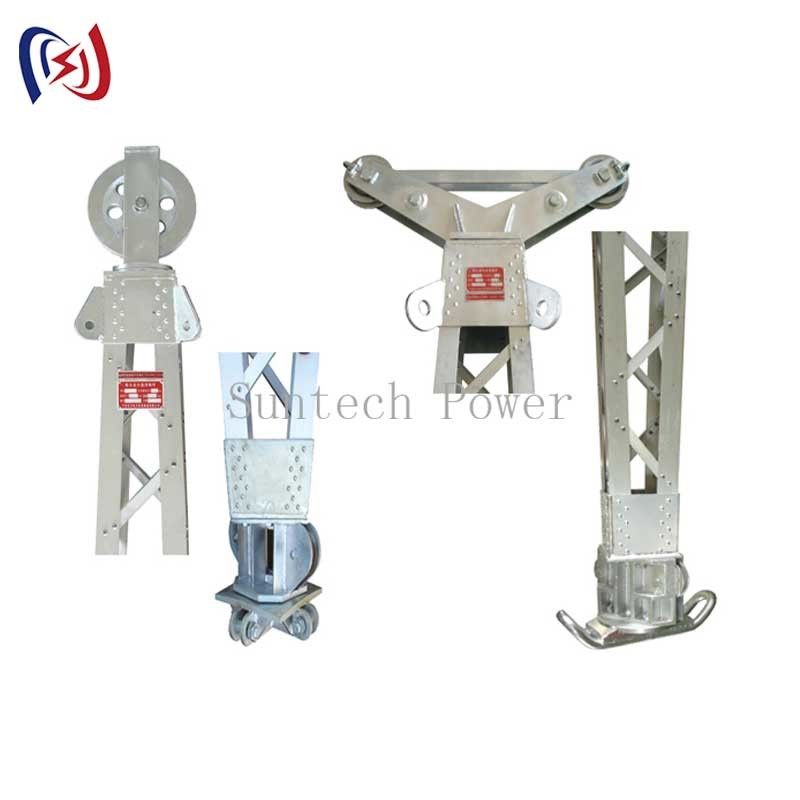

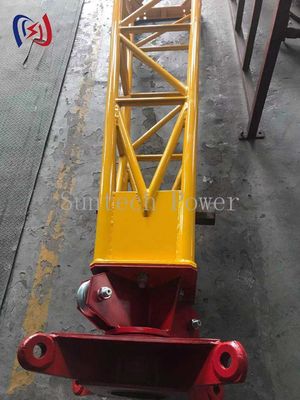

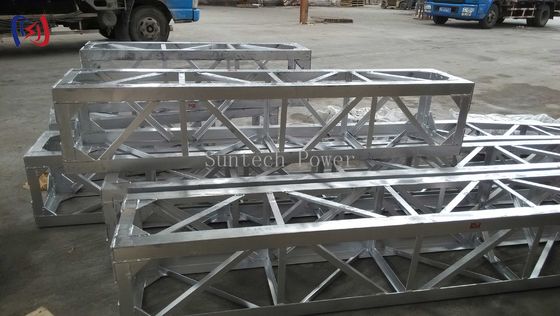

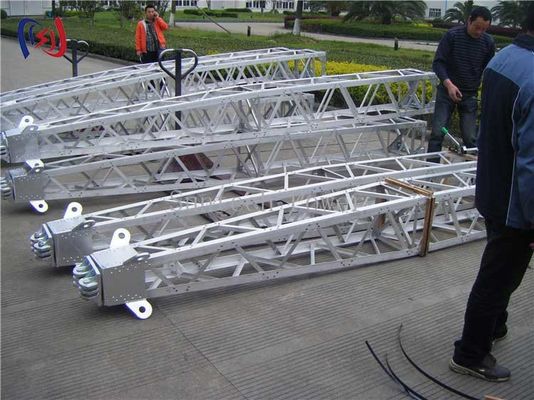

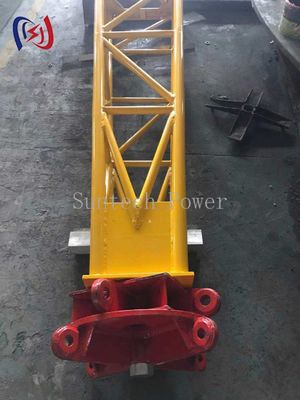

Inner Suspended Lattice Gin Pole Tower Erection Tools
About Suntech Power Tools
Located in southeast China, the earliest origin of Power Tools Leading City in China. We specialize in manufacturing cable pulling tools and hydraulic tension pullers for transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.
We offer OEM services and customization options for items like stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.
Use and Characteristics
- Designed for transmission and distribution line engineering, sling tower material, and positioning pulley set use
- Single-arm style design provides freedom from direction restriction for convenient operation
- Constructed with right angle aluminum titanium alloy sections and rivet joints for portability and durability
Technical Specifications
| Item Number | Model | Range (M) | Section (MM) | Main Part Size (MM) | Accessory Size (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
|---|---|---|---|---|---|---|---|---|
| 03131 | LBNX-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 13-38 | 2.5 | 10.5 |
| 03141 | LBNX-300B | 11-18 | 300*300 | 50*50*5 | 30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 | 50*50*5 | 30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 | 60*60*5 | 30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 | 60*60*5 | 40*40*3 | - | 2.5 | 20 |
| 03521 | LBNX-500C | 15-23 | 500*500 | 70*70*6 | 40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | - | 2.5 | 22 |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | - | 2.5 | 21 |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | - | 2.5 | 24 |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
