Heavy Duty Battery Hydraulic Cutter For Power Substation Maintenance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Battery Powered Hydraulic Cable Cutter | Item No.: | 21448-21448C |
|---|---|---|---|
| Model: | EC-40-EC-105 | Crimping Force: | 60KN-120KN |
| Stroke: | 40-105mm | Voltage: | 18V |
| Capacity: | 4.Ah | Charging Time: | 2Hour |
| Weight: | 15-20KG | Package: | Plastic Box |
| Highlight: | Power Substation Hydraulic Cutter,Heavy Duty Hydraulic Cutter,Substation Maintenance Hydraulic Cutter |
||

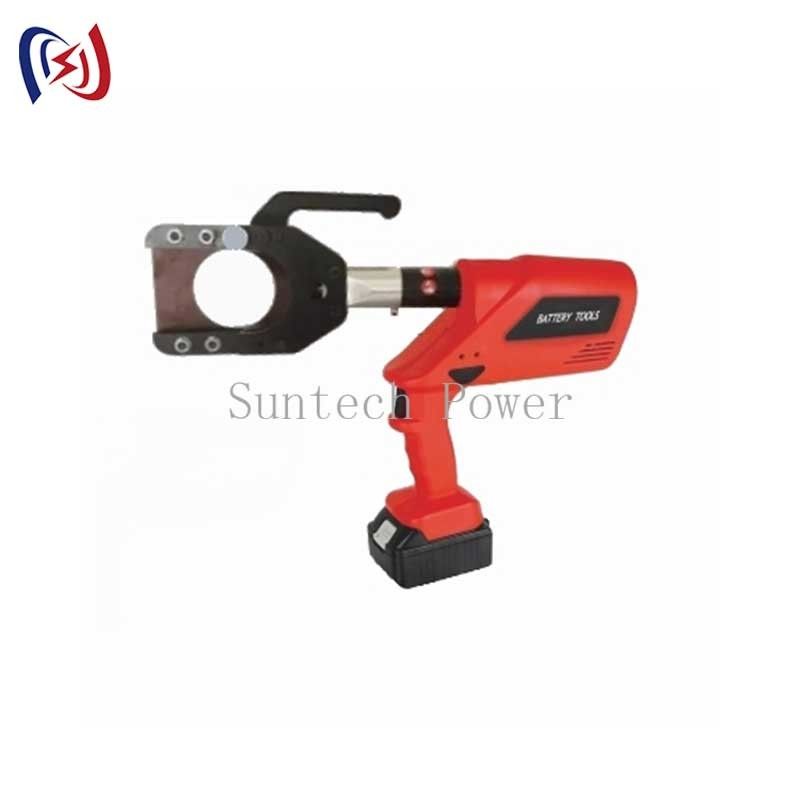

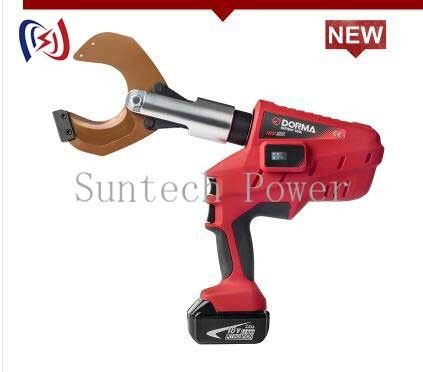

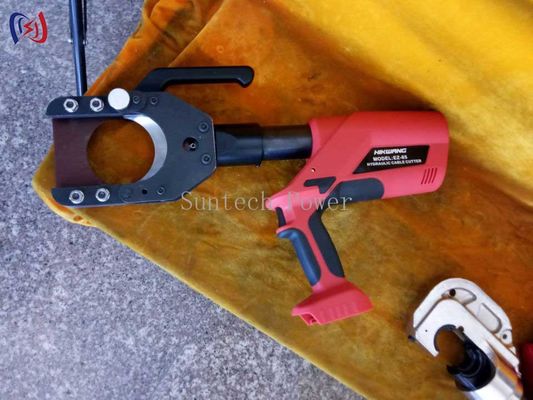

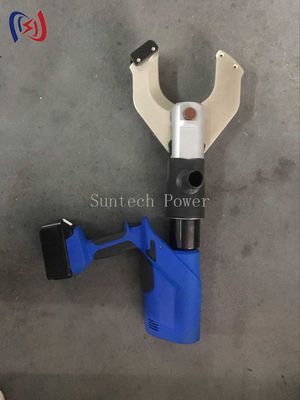

Heavy Duty Battery Hydraulic Cutter For Power Substation Maintenance
Product Description
This heavy-duty battery hydraulic cutter is designed for efficient power substation maintenance, offering cordless hydraulic power for high-pressure cutting without hoses or manual pumping.
Key Features
- Cordless Hydraulic Power: 18V lithium-ion battery for high-pressure cutting without hoses or manual pumping
- Ultra-Fast Cutting: Cables up to 105mm diameter in seconds with minimal effort
- Smart Hydraulic System: Auto pressure adjustment for clean cuts & overload protection
- Long Battery Life: Cuts 100+ cables per charge (varies by cable size)
- 360° Rotating Head: Access cables at any angle in tight spaces
- LED Work Light: Illuminates dark work areas for precision cutting
- Lightweight & Ergonomic: Only 3.5kg with anti-vibration handles
- Weather-Resistant: IP54 rated for outdoor & harsh conditions
Technical Specifications
- Max Cutting Capacity: 105mm (steel-armored cables)
- Battery: 18V/4.0Ah Li-ion
- Charging Time: 120 minutes (fast charge available)
- Blade Material: Tungsten carbide (replaceable)
Working Principle
The cutter uses battery-powered hydraulics to generate immense cutting force. When triggered, the electric pump drives hydraulic fluid to the blades, creating a clean, crimp-free cut in seconds—no manual pumping required.
Ideal Applications
- Power line maintenance (live line work with insulated models)
- Substation cable termination & upgrades
- Wind turbine & solar farm installations
- Railway & metro electrification projects
- Shipbuilding & offshore power systems
- Industrial plant shutdowns & repairs
Advantages Over Manual Tools
- 5x Faster - Cuts cables in seconds vs. manual tools
- No Fatigue - No repetitive pumping required
- Precision Cuts - Clean, smooth edges every time
- Safer Operation - Reduced physical strain & vibration
- Cordless Freedom - No hoses, pumps, or cords
Service & Support
- 1-Year Warranty
- Global Technical Support
Hydraulic Cable Cutter Features
- One key control
- Cutting head rotates 350°
- Two stage hydraulics
- Shorter charging cycles
- Automatic retraction when crimp is completed
- Battery power display
Hydraulic Cable Cutter Technical Data
| Item number | 21448 | 21448A | 21448B |
|---|---|---|---|
| Model | EC-40 | EC-85 | EC105 |
| Crimping force | 60KN | 60KN | 120KN |
| Cutting range | armored CU/AL cable Φ40mm max | armored CU/AL cable Φ85mm max | armored CU/AL cable Φ105mm max |
| Stroke | 40mm | 85mm | 105mm |
| Voltage | 18V | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah |
| Charging time | 2 hours | 2 hours | 2 hours |
| Weight | approx. N.W 5.5KG G.W 11.5KG | approx. N.W 8.5KG G.W 14.5KG | approx. N.W 13.0KG G.W 20KG |
| Package | plastic box 570*500*130mm | plastic box 570*500*130mm | plastic box 570*500*130mm |
