Portable Hydraulic Punching Kit With Interchangeable Die Sets
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Punching Device | Item No.: | 06243-06249 |
|---|---|---|---|
| Model: | CH-60-CH-100 | Punching Force: | 300-1000KN |
| Throat Diameter: | 95-135mm | Hight: | 350-400mm |
| Weight: | 19-150KG | Warranty: | 1 Year |
| Highlight: | Interchangeable Die Sets Punching Kit,Portable Hydraulic Punching Kit |
||

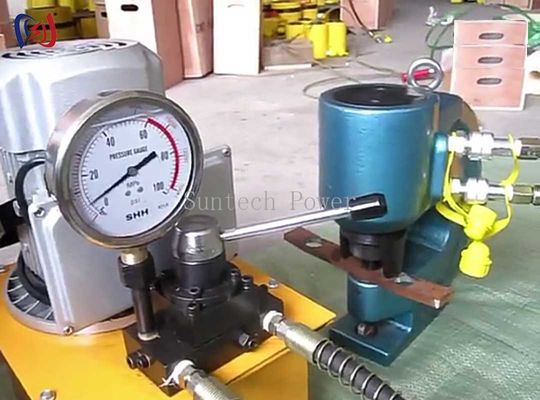

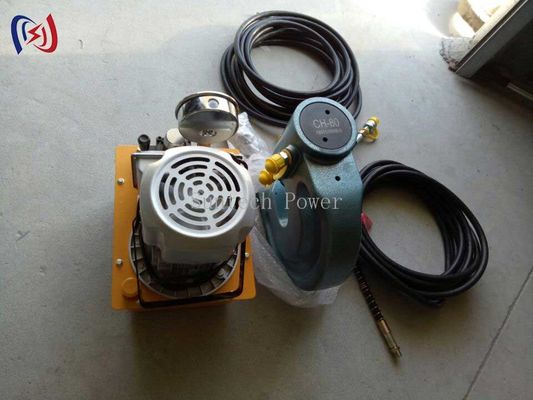

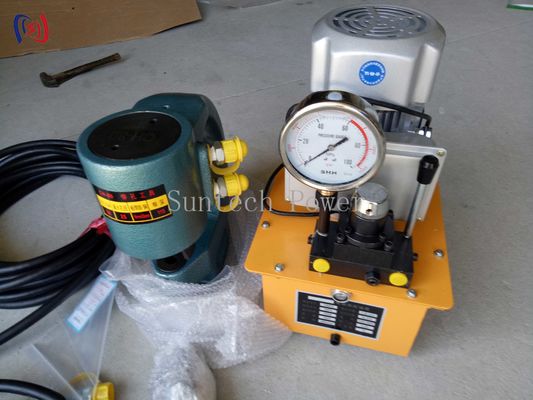

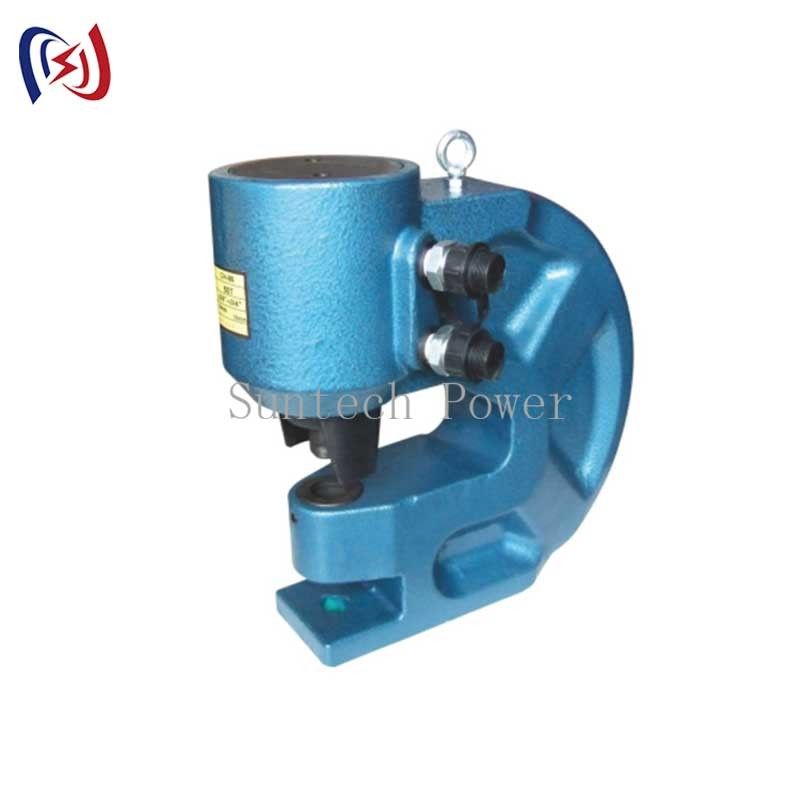

Portable Hydraulic Punching Kit With Interchangeable Die Sets
Key Features
- High-Pressure Punching - Cuts clean holes up to 80mm diameter in thick metal
- Interchangeable Dies - Multiple size options
- Quick-Release Valve - Fast die retraction for efficient operation
- Precision Alignment - Centering pin ensures accurate hole placement
- Durable Construction - Hardened steel dies with anti-corrosion treatment
Technical Specifications
Die Sets Available: 10-36mm (standard) / custom sizes on request
Operating Temperature: -20°C to 50°C
Working Principle
The tool uses hydraulic pressure to force a hardened punch through metal sheets. The operator positions the die, applies hydraulic pressure via the hand pump, and creates a perfectly round hole in seconds. The quick-release valve instantly retracts the punch for rapid operation.
Primary Applications
- Electrical panel and cabinet manufacturing
- Cable gland installations in metal enclosures
- HVAC ductwork and industrial piping
- Telecom equipment installations
- Shipbuilding and railway electrical systems
Advantages Over Traditional Methods
Cleaner Cuts - No deformation or burrs vs. drilling
Faster Operation - Creates holes in seconds
No Power Required - Works anywhere
Precise Results - Perfectly round holes every time
Versatile - Handles various metals including stainless steel
Service & Support
- 1-Year Warranty (on hydraulic components)
- Die Sharpening Service
- 24/7 Technical Support
Product Specifications
| Item No. | Model | Punching force (KN) | Punching thickness (MM) | Throat diameter (MM) | Height (MM) | Weight (KG) | Specification of matching mold (MM) | Hydraulic pump |
|---|---|---|---|---|---|---|---|---|
| 06243 | CH-60 | 300 | iron6 copper10 | 95 | 350 | 19 | Φ10.5,Φ13.8 Φ17,Φ20.5 | CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 | iron10 copper12 | 110 | 360 | 35 | Φ10.5,Φ13.8 Φ17,Φ20.5 | CP-700/ZCB6-5-A3 |
| 06248 | CH-80 | 500 | iron16 copper20 | 115 | 340 | 45 | Φ16,Φ18 Φ22,Φ25 | ZCB6-5-AB |
| 06249 | CH-100 | 1000 | iron18 copper20 | 135 | 400 | 150 | Φ25,Φ28 Φ32,Φ36 | ZCB6-5-AB |
Additional Information
For copper, aluminum and low carbon steel punching, the kit needs to be equipped with a hydraulic pump.
The mold size can be customized according to the requirements of the user.
