A Shape Lattice Gin Pole Stringing Tools In Tower Erection Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | A-shape Lattice Gin Pole | Item No.: | 03361-03615 |
|---|---|---|---|
| Range: | 8-28M | Section: | 250x250-700x700mm |
| Main Part Size: | 50x50x4-80x80x6mm | Accessory Size: | 25x25x3-50x50x4mm |
| Vertical Load: | 72-26--600-230KN | Safety Factor: | 2.5K |
| Weight: | 10.5x2-75x2 KG/M | Warranty: | 1 Year |
| Highlight: | Tower Erection Tools,inspection pulleys,stringing tools |
||

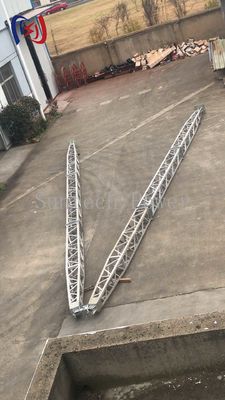

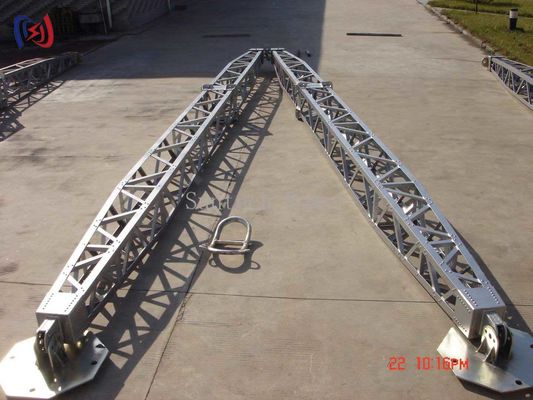

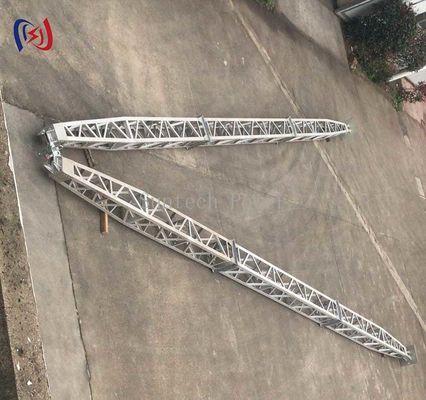

A Shape Lattice Gin Pole Stringing Tools In Tower Erection Tools
Product Description
A Shape Tubular Gin Pole Stringing Tools In Tower Erection Tools
Suntech Power Tools, located in southeast China, is a leading manufacturer of power tools in China. We specialize in various cable pulling tools and hydraulic tension pullers for transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.
We offer customized solutions for stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.
Applications
- Used for assembling and erecting towers and poles in transmission line construction
Product Specifications

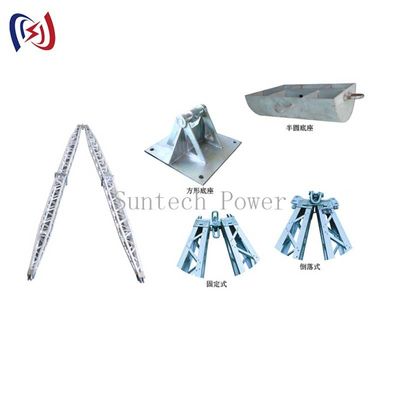

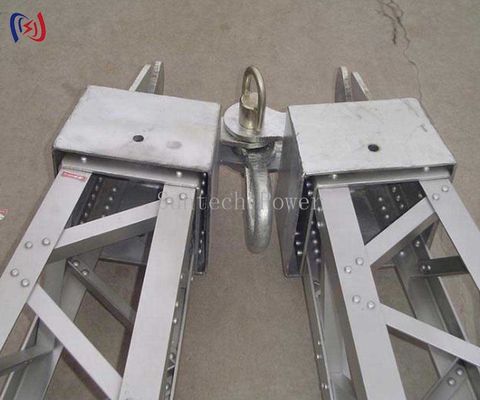

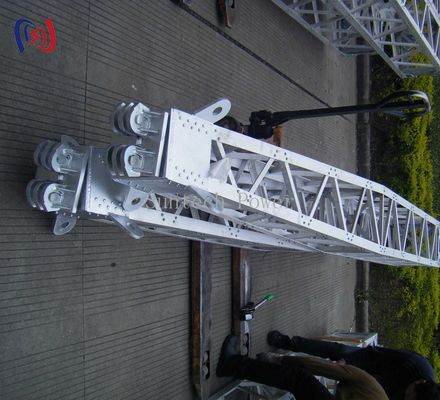

Note: The head part of the Gin Poles is inverted, and the base part is semicircle or square. Please specify when ordering. Models 03361-03445 are aluminum alloy material. Models 03611-03615 are manganese steel material.
| Item No. | Model | Range (M) | Section (MM) | Main Part Size (MM) | Accessory Size (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
|---|---|---|---|---|---|---|---|---|
| 03361 | LBR-250 | 8-13 | 250*250 | 50*50*4 | 25*25*3 | 72-26 | 2.5 | 10.5*2 |
| 03371 | LBR-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 90-26 | 10.5*2 | |
| 03380 | LBR-300B | 300*300 | 50*50*5 | 30*30*3 | 11.0*2 | |||
| 03381 | LBR-350 | 8-16 | 350*350 | 50*50*5 | 30*30*3 | 120-35 | 10.5*2 | |
| 03391 | LBR-400A | 11-18 | 400*400 | 50*50*5 | 30*30*3 | 147-38 | 11.0*2 | |
| 03401 | LBR-400B | 400*400 | 60*60*5 | 30*30*3 | 14.6*2 | |||
| 03411 | LBR-500A | 13-20 | 500*500 | 60*60*5 | 30*3*3 | 162-81 | 18*2 | |
| 03415 | LBR-500B | 500*500 | 60*60*5 | 40*40*3 | 20*2 | |||
| 03421 | LBR-500C | 500*500 | 70*70*6 | 40*40*3 | 256-127 | 21*2 | ||
| 03425 | LBR-500D | 500*500 | 70*70*6 | 50*50*4 | 22*2 | |||
| 03431 | LBR-600A | 15-22 | 600*600 | 60*60*6 | 40*40*3 | 171-96 | 20*2 | |
| 03435 | LBR-600B | 600*600 | 70*70*6 | 40*40*3 | 21*2 | |||
| 03441 | LBR-600C | 600*600 | 70*70*6 | 50*50*4 | 275-150 | 22*2 | ||
| 03445 | LBR-600D | 600*600 | 80*80*6 | 50*50*4 | 24*2 | |||
| 03611 | GBR-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 75-35 | 33*2 | |
| 03612 | GBR-400 | 12-18 | 400*400 | 56*56*5 | 30*30*3 | 100-75 | 43*2 | |
| 03613 | GBR-500 | 14-24 | 500*500 | 63*63*5 | 40*40*4 | 185-125 | 54*2 | |
| 03614 | GBR-600 | 16-26 | 600*600 | 70*70*6 | 40*40*4 | 420-145 | 63*2 | |
| 03615 | GBR-700 | 18-28 | 700*700 | 80*80*6 | 50*50*4 | 600-230 | 75*2 |
