High Strength Pilot Wire Connector 10KN - 250KN Cable Pulling Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Fixed Joints | Item No.: | 17111-17118 |
|---|---|---|---|
| Rated Load: | 10-250KN | Weight: | 0.2-3KG |
| Warranty: | 1 Year | Uses: | Apply To Connecting Pilot Rope Or Pulling Rope And To Pass Over The Puller. |
| Feature: | Made Of High Quality Steel With High Strength And Small Size.It Can Pass Over Stringing Block | Explain: | Number "d" Means The Pin Diameter. |
| Highlight: | High Strength Pilot Wire Connector,Pilot Wire Connector 10KN,250KN Pilot Wire Connector |
||

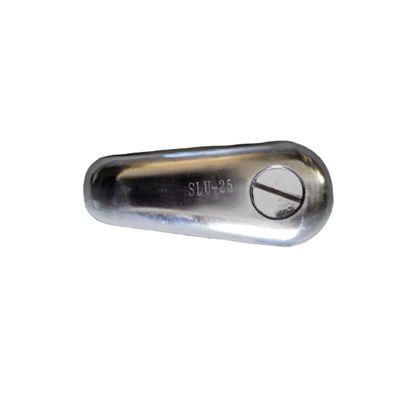

High Strength Pilot Wire Connector 10KN - 250KN Cable Pulling Tools
Fixed Joint U Shape Pilot Wire Connectors Cable Pulling Tools
Suntech Power Tools, located in southeast China, is the earliest origin Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tension and puller equipment to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation. We accept OEM orders and can customize items like stringing blocks, cable rollers, cable jack stands, etc. Construction Safety Tools have no minimum order quantity requirements.
This connector is designed for connecting anti-twisting steel rope in traction operations. Its compact size and lightweight design allow smooth passage through corners, pulleys, tension machines, and other equipment.
Key Features:
- Suitable for towing operations with no twisting wire rope
- Compact size and lightweight for easy maneuverability
- Can smoothly pass through machine traction pulleys and tension machines
- Application: Suitable for traction of connecting anti-twisting wire rope
- Features: High strength, lightweight, and attractive appearance
SLU-5 50KN Fixed Joints U Shape Pilot Wire Connectors For Cable Pulling
Fixed Joints U Shape Pilot Wire Connector Data Sheet
| Model | A | B | C | d | D | E | Rated load(KN) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 30 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 30 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
