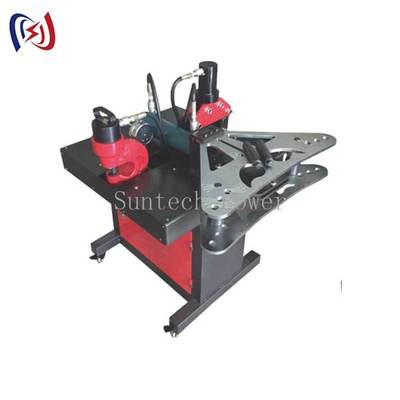

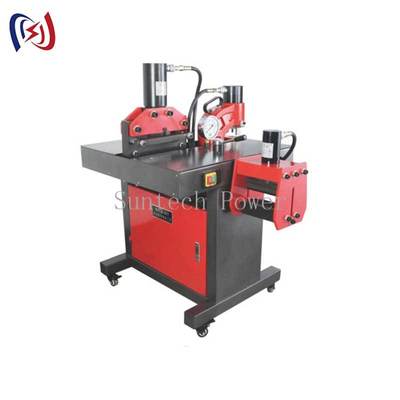

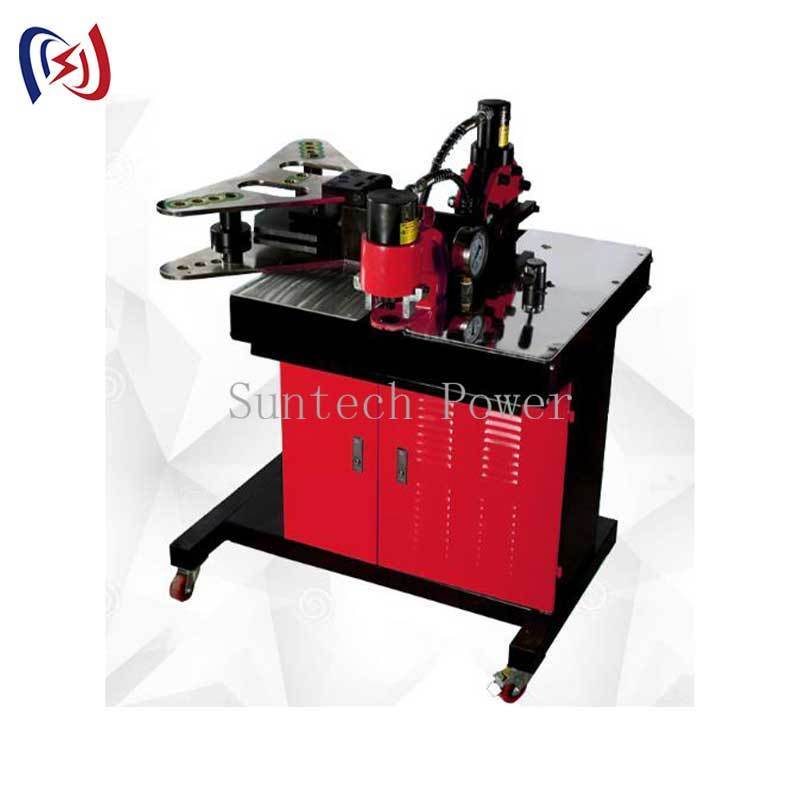

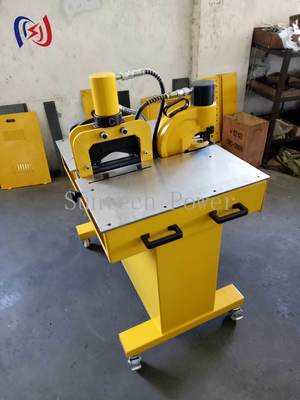

Hydraulic Bus Bar Machine Precision Tool For Clean Hole Punching And Cutting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Bus Bar Machine | Item No.: | 06032-06031 |
|---|---|---|---|
| Model: | EPCB-301-401 | Voltage: | 220V50HZ |
| Cutting Force: | 200-300KN | Punching Force: | 300-350KN |
| Highlight: | hydraulic bus bar machine,precision bus bar punching tool,bus bar cutting tool with warranty |
||
Hydraulic Bus Bar Machine Precision Tool For Clean Hole Punching And Cutting
Professional hydraulic tool designed for precise hole punching and cutting of copper and aluminum bus bars in electrical applications.
Professional Bus Bar Processing Performance
- Delivers up to 15 tons of hydraulic pressure for precise operations
- Handles copper and aluminum bus bars up to 200mm wide and 20mm thick
- Maintains ±0.1mm tolerance for hole punching and cutting
Industrial-Grade Construction
- Forged steel frame withstands continuous heavy-duty use
- Hardened steel tooling for extended durability
- Corrosion-resistant coating for harsh electrical environments
Advanced Safety Features
- Automatic pressure relief valve prevents system overload
- Dual safety locks prevent accidental operation
- Emergency stop with quick release function
Ergonomic Design Advantages
- Balanced weight distribution reduces operator fatigue
- Comfortable non-slip handles for extended use
- Requires 50% less effort than manual methods
Comprehensive Applications
- Ideal for processing:
- HV power distribution bus bars
- Substation copper bars
- Switchgear components
- Electrical panel bus systems
- Industrial power connections
Technical Specifications
| Item No. | 06232 | 06231 |
|---|---|---|
| Model | EPCB-301 | EPCB-401 |
| Function | Three functions: cutting, punching and bending | Four functions: cutting, punching and bending (horizontal and erective) |
| Dimension of work table | approx. 690×690×730mm | approx. 690×690×730mm |
| Voltage single phase | 220V 50HZ | 220V 50HZ |
| Rating oil pressure | 700kg/cm² | 700kg/cm² |
| Bending force | 170kn/200kn | 270kn |
| Bending range | 150×10mm max/200×12mm max | 125×12.5mm max |
| Cutting force | 200kn/300kn | 200kn/300kn |
| Cutting range | 150×10mm max/200×12mm max | 150×10mm max/200×12mm max |
| Punching force | 300kn/350kn | 300kn/350kn |
| Distance from hole to sheet side | 95×110mm max | 95×110mm |
| Punch range | Φ10.5mm, Φ13.8mm, Φ17mm, Φ20.5mm | 3/8" (Φ10.5mm), 1/2" (Φ13.8mm), 5/8" (Φ17mm), 3/4" (Φ20.5mm) |
| Package | Wooden case | Wooden case |
All specifications are subject to change without notice. Please contact our technical team for the most current information.
