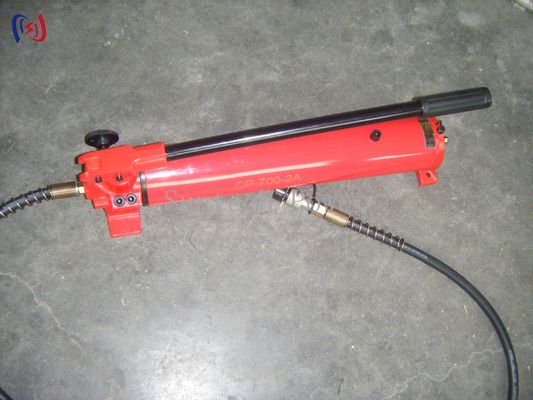

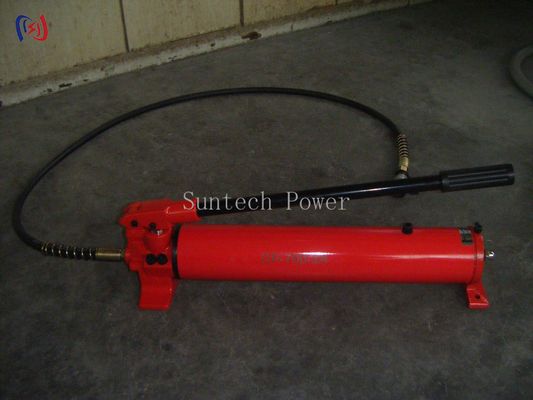

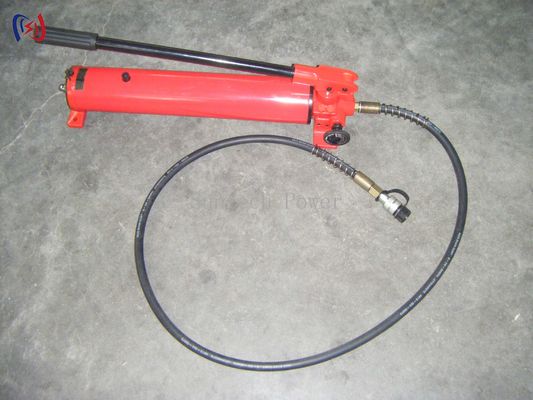

Industrial Grade Manual Hydraulic Pump For Power Construction Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Pump | Item No.: | 16164-16153-2 |
|---|---|---|---|
| Model: | CP-700-CFP-800B | Type: | Hand/Foot Pump |
| Oil Capacity: | 600cc-2700cc | Direction Of Piston: | Double |
| Weight: | 10.8-15.5KG | Package: | Paper Box |
| Highlight: | Hydraulic Pump for Power Tools,Industrial Grade Hydraulic Pump,Manual Hydraulic Pump |
||
Industrial-Grade Manual Hydraulic Pump for Power Construction Tools
Key Features
- Manual/Electric Options - Choose between hand-operated or battery-powered models
- Built-In Pressure Gauge - Monitors and controls hydraulic pressure in real time
- Quick-Release Valve - Allows fast reset and tool repositioning
- Large Oil Reservoir - Reduces refill frequency during extended operations
- Durable Construction - Hardened steel body with anti-corrosion coating
- Safety Features - Overpressure relief valve and ergonomic non-slip handles
Technical Specifications
Oil Capacity: 200-500ml (depending on model)
Connector Type: Standard quick-connect couplers
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Working Principle
The pump uses manual lever action (or electric motor) to pressurize hydraulic oil, which is then delivered through high-pressure hoses to connected tools (crimpers, cutters, etc.). The pressure relief valve ensures safe operation by preventing system overload.
Primary Applications
- Power cable crimping and cutting
- Substation maintenance and construction
- Industrial hydraulic tool systems
- Telecom and railway electrification projects
- Mining and offshore power installations
Advantages
- Consistent Performance - Maintains steady pressure for precision work
- Versatile Compatibility - Works with most standard hydraulic tools
- Low Maintenance - Sealed system with minimal wear parts
- Portable - Compact design for easy transport to job sites
Service & Support
1-Year Warranty
Global Technical Support
Manual Hydraulic Pump Features
- Double loop piston
- Iron box packing
- Use No.15 Antiwear hydraulic oil
Manual Hydraulic Pump Specifications
| Item number | 16164C | 16164 | 16164A | 16164B |
|---|---|---|---|---|
| Model | CP-180 | CP-700 | CP-700A | CFP-800B |

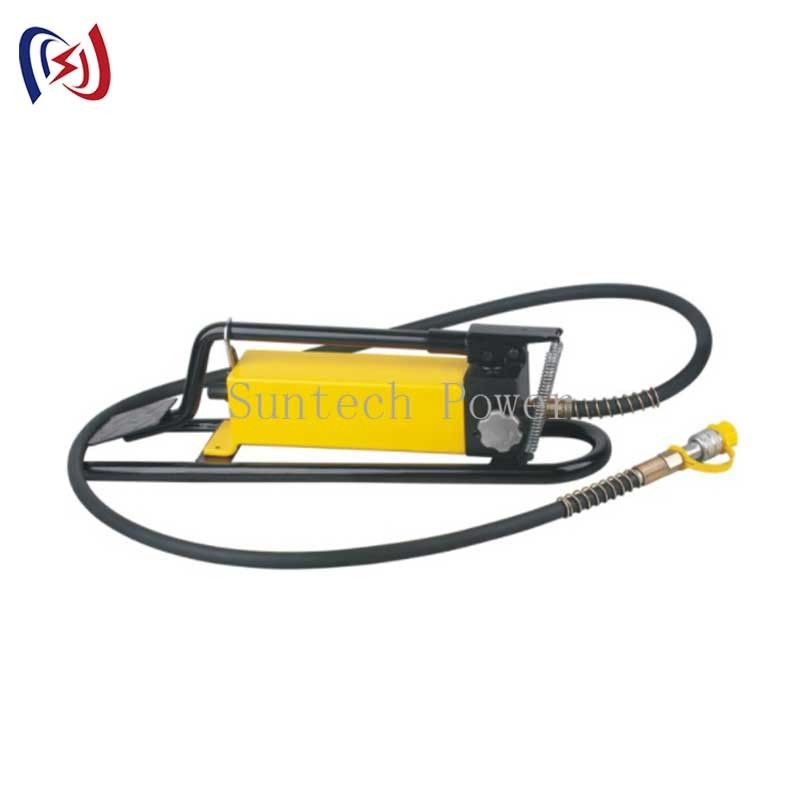

| Type | hand | hand | hand | foot pump |
| Max output pressure | / | low pressure 2Mpa high pressure 70MPa |
low pressure 2Mpa high pressure 70Mpa |
low pressure 2Mpa high pressure 70Mpa |
| Output of the oil | / | low pressure 13cc high pressure 1.8cc |
low pressure 13cc high pressure 2.3cc |
low pressure 13cc high pressure 2.3cc |
| Oil capacity | 350cc | 900cc | 2700cc | 600cc |
| Direction of piston | single | double | double | double |
| Weight(KG) | approx.N.W9.5KG G.W10.9KG | approx.N.W9.5KG G.W10.9KG | approx.N.W14.1KG G.W15.5KG | approx.N.W9.8KG G.W10.8KG |
| Measurement (LxWxH) | 340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
| Package | paper box | paper box | paper box | paper box |
