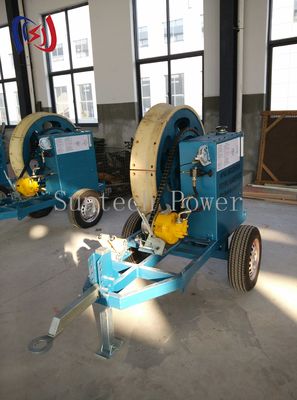

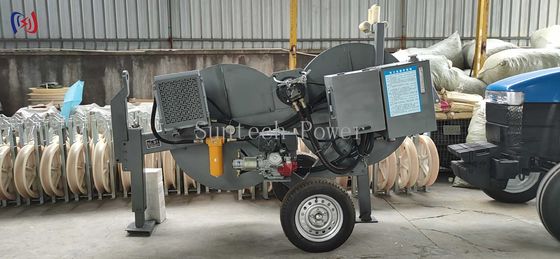

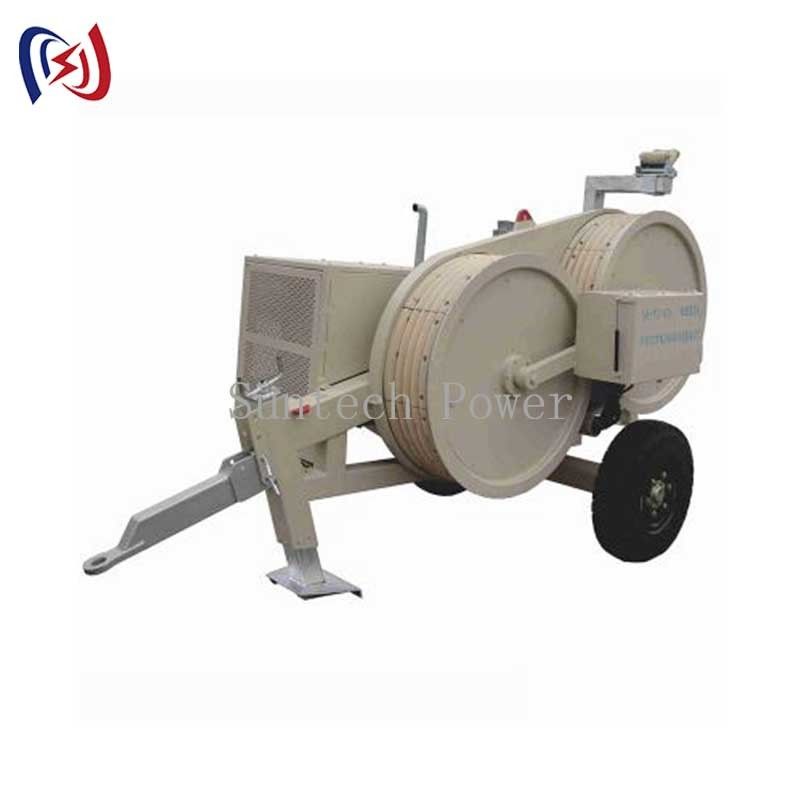

Hydraulic Cable Puller 7.5KN-40KN Conductor Stringing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Tension Equipment | Item No.: | 07212-07201 |
|---|---|---|---|
| Maximum Tension: | 7.5-40KN | Bottom Of Groovr Diamere: | 1100-1850mm |
| Weight: | 450-10500KG | Warranty: | 1 Year |
| Highlight: | Hydraulic Cable Puller 7.5KN,40KN Conductor Stringing Machine,7.5KN Conductor Stringing Machine |
||
Hydraulic Cable Puller 7.5KN-40KN Conductor Stringing Machine
Hydraulic Tension Equipment Constant Tension Conductor Stringing
Technical Specifications
| Item No. | 07181 | 07192 | 07197 |
|---|---|---|---|
| Model | SA-YZ2*35 | SA-YZ2*40B | SA-YZ2*55 |
| Maximum Tension(KN) | 2*35/1*70 | 2*40/1*80 | 2*55/1*110 |
| Continuous Tension(KN) | 2*30/1*60 | 2*35/1*70 | 2*50/1*100 |
| Maximum speed(KM/H) | 5 | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1200 | Φ1500 | Φ1600 |
| Number of groove(MM) | 2*5 | 2*5 | 2*5 |
| Number of groove(KN) | 2*30/1*60 | 2*40/1*80 | 2*50/1*100 |
| Maximum speed back(KM/H) | 2*2.1 | 2*1.5 | 2*2.1 |
| Maximum suitable conductor diameter(MM) | Φ32 | Φ40 | Φ42.5 |
| Engine power/speed(KW/RPM) | 51/2500 | 51/2500 | 54/2500 |
| Dimensions(M) | 4.4*2.1*2.6 | 4.5*2.2*2.8 | 5.0*2.3*2.7 |
| Weight(KG) | 4000 | 4850 | 7500 |
