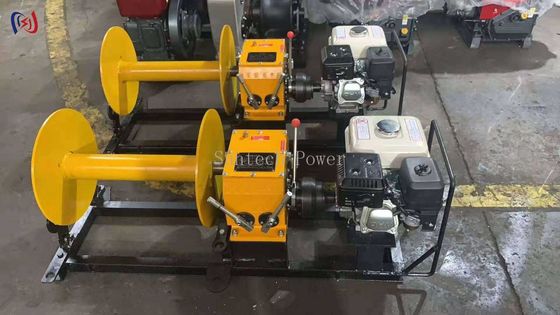

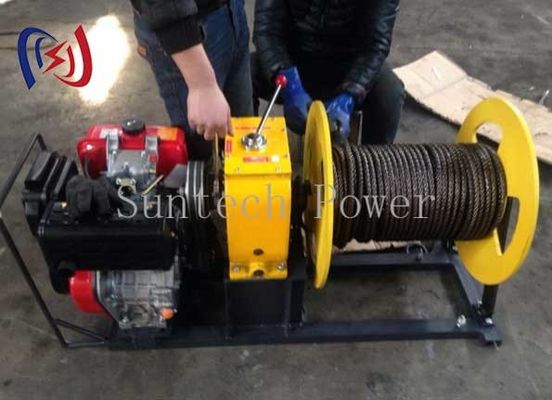

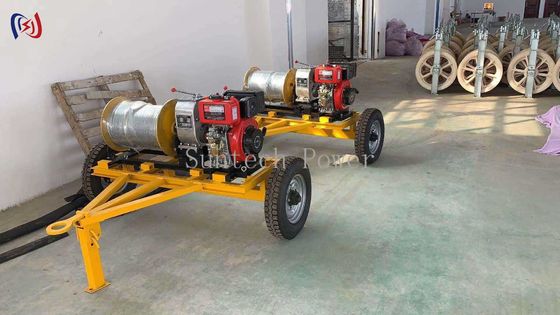

Portable Cable Pulling Winch Compact For Utility Telecom Line Installation
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Cable Pulling Winch | Item No.: | 08155-08156 |
|---|---|---|---|
| Model: | JJQ-30/JJQ-50 | Rotational Speed: | 6.5-16RPM |
| Traction Speed: | 4-9M/min | Tractive Force: | 3/5T |
| Power: | 4.04-6.61KW | Weight: | 100-150KG |
| Highlight: | Compact Cable Pulling Winch,Telecom Line Cable Pulling Winch,Portable Cable Pulling Winch |
||
Portable Cable Pulling Winch Compact For Utility Telecom Line Installation
Cable Pulling Winch - Heavy-Duty 5T Capacity for Underground & Overhead Cable Installation
The Cable Pulling Winch is a professional-grade cable installation system designed for underground conduit, overhead power lines, and telecom fiber optic installations. Featuring an 8000lb (3629kg) pulling capacity, this winch delivers precise tension control through its automatic braking system, preventing cable damage during installation. The dual-power 24V/110V motor ensures reliable operation in both field and workshop environments.
Key Features
- Smart Tension Control - Automatically adjusts pulling force to prevent cable strain
- Portable & Compact - Weighs only 100KG with folding handle
- Weatherproof Construction - IP65-rated for all-weather use
Performance Benefits
- Pulls 500ft (150m) of 4" conduit cable in 8 minutes
- 20,000+ pulling cycles before first maintenance
- 8000lb maximum pull force for heavy cable installations
- 55dB operation - Quiet enough for urban areas
Technical Specifications
- Model: JJQ-30
- Pulling Capacity: 5T
- Line Speed: 30ft/min (9m/min) under load
- Rope Capacity: 500ft (150m) synthetic rope
- Compliance: ISO 9001
- Warranty: 1 year
Ideal Applications
- Underground power cable installation
- Telecom fiber optic line pulling
- Industrial conduit wiring
- Bridge and tunnel cable projects
Technical Data
| Item No. | Model | Rotation direction | Gear | Rotational speed (RPM) | Traction speed (M/MIN) | Tractive force(T) | Power(KW) | Outline(mm) | Weight(KG) |
|---|---|---|---|---|---|---|---|---|---|
| 08155 | JJQ-30 6HP Gasoline engine | corotation | I slow | 9.0 | 4.0 | 3.0 | 4.04 | 1000*500*560 | 100 |
| Ⅱ fast | 16.0 | 6.6 | 1.8 | ||||||
| reversal | reverse gear | 7.5 | 3.3 | No lifting | |||||
| 08156 | JJQ-50 9HP Gasoline engine | corotation | I slow | 6.5 | 4.0 | 5.0 | 6.61 | 1400*510*650 | 150 |
| Ⅱ fast | 16.0 | 9.0 | 2.2 | ||||||
| reversal | reverse gear | 7.0 | 4.0 | No lifting |
